INSTALLATION - Continued
4
6
HYEX02157

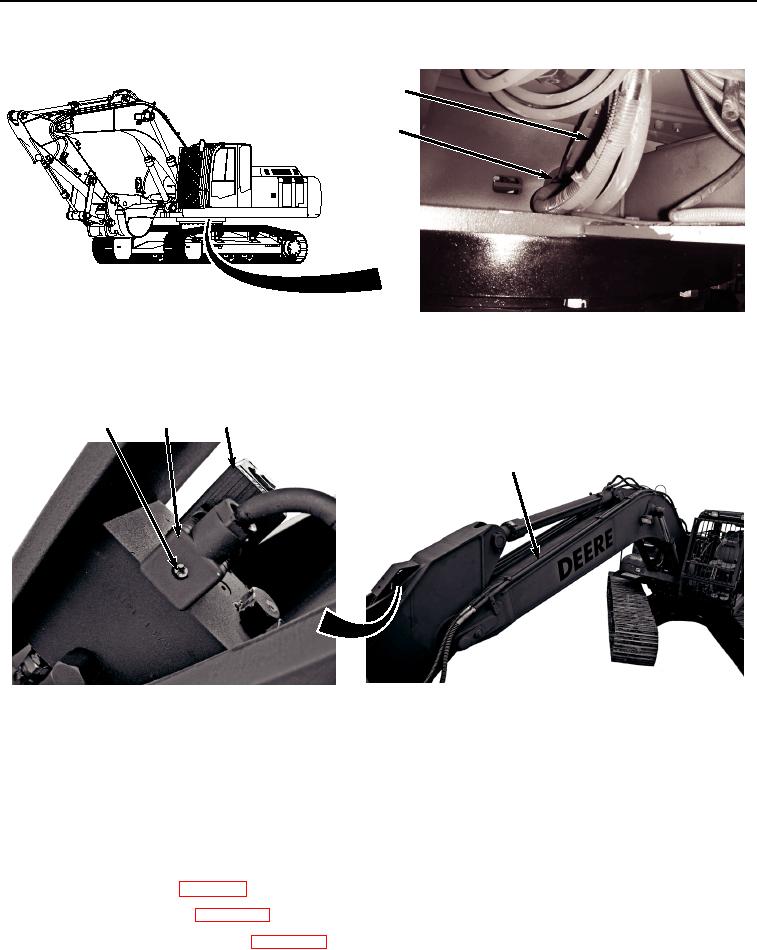

Figure 11.
Wiring Harness To Frame Installation.
6.
Install wiring harness (Figure 12, Item 4) to boom lines (Figure 12, Item 5).
1
2
3
4, 5
HYEX02156
Figure 12. Wiring Harness To Boom Installation.
7.
Connect connector (Figure 12, Item 2) to control valve (Figure 12, Item 3).
8.
Tighten screw (Figure 12, Item 1) on connector (Figure 12, Item 2).
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Install cab rear tray. (WP 0566)
2.
Install center top cover. (WP 0589)
3.
Connect negative battery cable. (WP 0521)
