TM 5-3805-294-23-4
0523
REMOVAL - Continued
1
2
3
4
HYEX03318

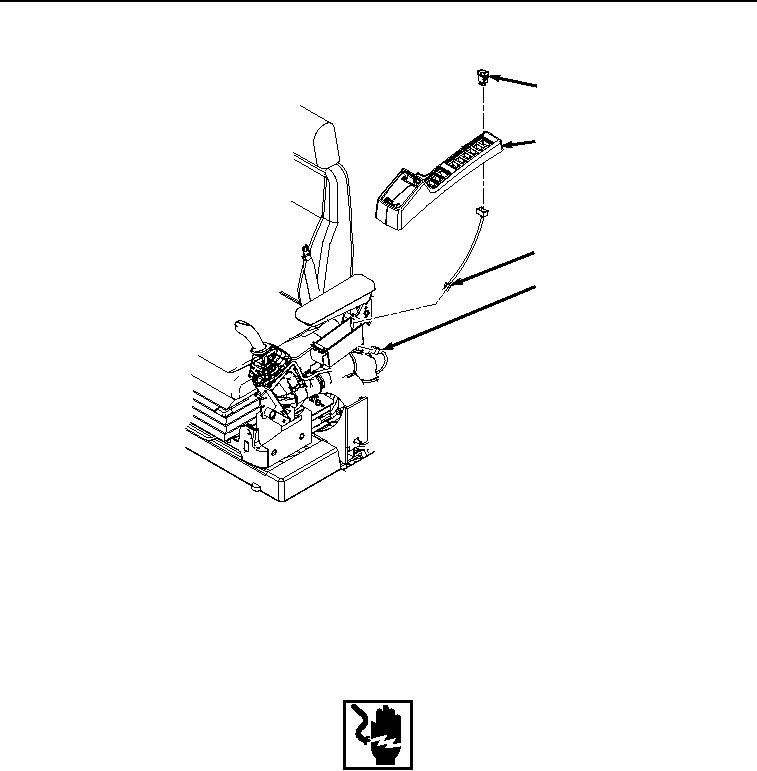

Figure 1. Reversing Fan Switch and Wiring Harness Removal.
2.
Remove switch wiring harness (Figure 1, Item 3) from machine wiring harness connector S15 (Figure 1, Item
4).
END OF TASK
INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install wires, connectors, and wiring harnesses as noted prior to removal.
Install tie wraps as required.
1.
Install switch wiring harness (Figure 2, Item 3) to machine wiring harness connector S15 (Figure 2, Item 4).
