REMOVAL - Continued
7.
Disconnect wire harness E4 (Figure 2, Item 6) from left boom work light connector (Figure 2, Item 14).
END OF TASK
INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install tie wraps as required.
1.
Connect left boom work light connector (Figure 3, Item 14) to wire harness E4 (Figure 3, Item 6).
13
6
14

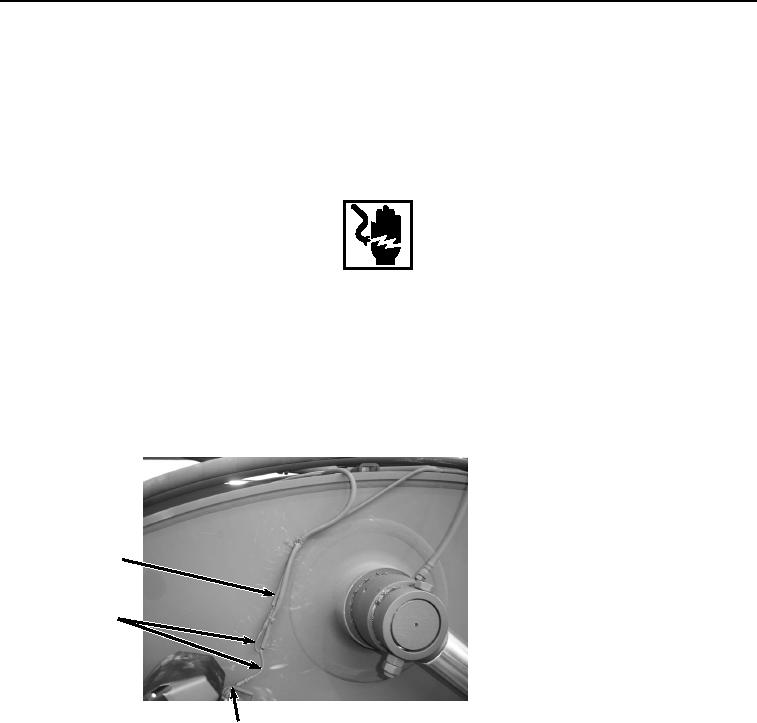

HYEX01929
Figure 3.
Wiring Harness E4 Installation.
2.
Connect power wire harness E2 (Figure 3, Item 13) to wire harness E4 (Figure 3, Item 6).
NOTE
Right boom wire harness E4 (Figure 4, Item 6) is routed over top of boom arm to opposite
side to connect to right boom wiring harness work light.
3.
Install angle mounting bracket (Figure 4, Item 4) to mounting block (Figure 4, Item 12) with washer (Figure 4,
Item 11) and bolt (Figure 4, Item 10).
