REMOVAL - Continued
6
5
9
8
3
7
12 11 10 1 2 4
HYEX01928

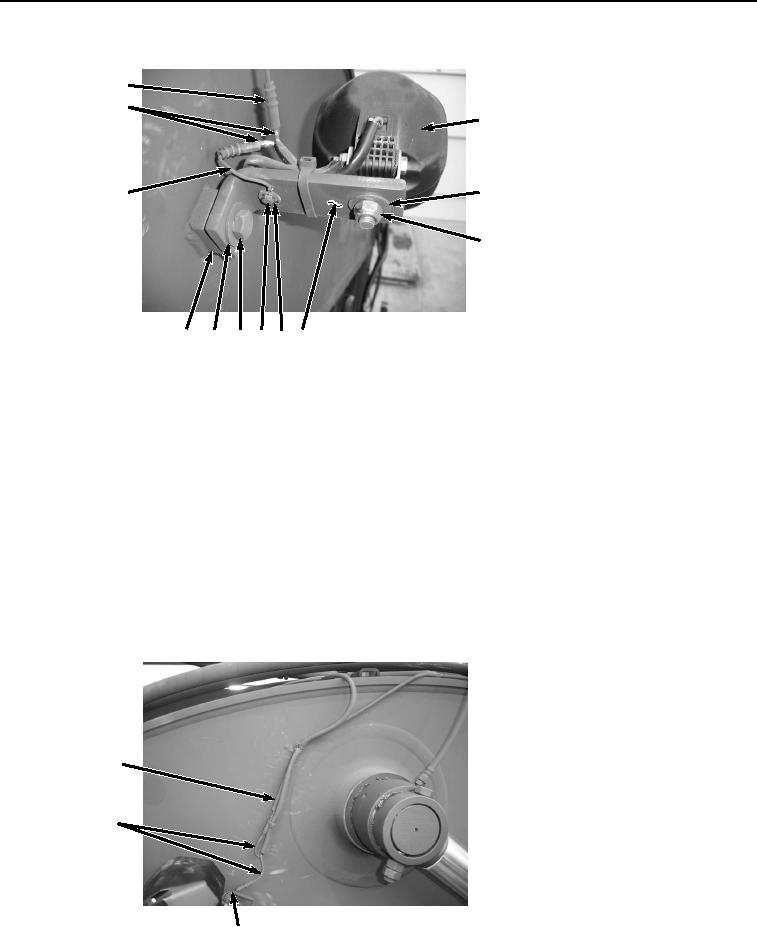

Figure 1. Right Boom Work Light and Harness Removal.
2.
Disconnect wire harness (Figure 1, Item 3) from right boom work light wire (Figure 1, Item 5).
3.
Disconnect wire harness E4 (Figure 1, Item 6) from right boom work light wire (Figure 1, Item 5).
4.
Remove locknut (Figure 1, Item 7) and washer (Figure 1, Item 8) from angle mounting bracket (Figure 1, Item
4) and right boom work light (Figure 1, Item 9). Discard locknut.
5.
Remove bolt (Figure 1, Item 10), washer (Figure 1, Item 11), and angle mounting bracket (Figure 1, Item 4)
from mounting block (Figure 1, Item 12).
NOTE
Right boom wire harness E4 (Figure 2, Item 6) is routed over top of boom arm to opposite
side to connect to left boom work light and power wire harness E11 (Figure 2, Item 13).
6.
Disconnect wire harness E4 (Figure 2, Item 6) from power wire harness E11 (Figure 2, Item 13).
13
6
14
HYEX01929
Figure 2. Wiring Harness E4 Removal.
