INSTALLATION
1
6
2
3
7
4
5
8
HYEX00321

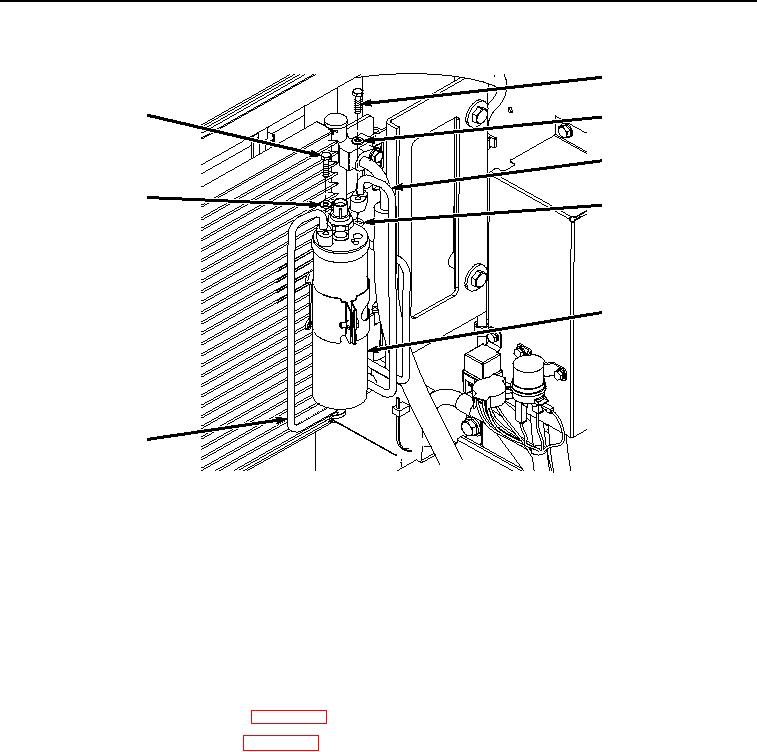

Figure 6.
Hose Installation.
7.
Lightly lubricate O-ring (Figure 6, Item 4) with clean oil.
8.
Install O-ring (Figure 6, Item 4) to hose (Figure 6, Item 3).
9.
Install hose (Figure 6, Item 3) with O-ring (Figure 6, Item 4) to receiver-dryer (Figure 6, Item 5) with bolt (Figure
6, Item 1) and washer (Figure 6, Item 2).
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Connect negative battery cable. (WP 0521)
2.
Charge air conditioner system. (WP 0540)
3.
Perform the Standard Follow-On Maintenance Instructions. (Volume 3, WP 0384)
END OF TASK
END OF WORK PACKAGE
