REMOVAL - Continued
37
40
39
38
36
41
HYEX02533

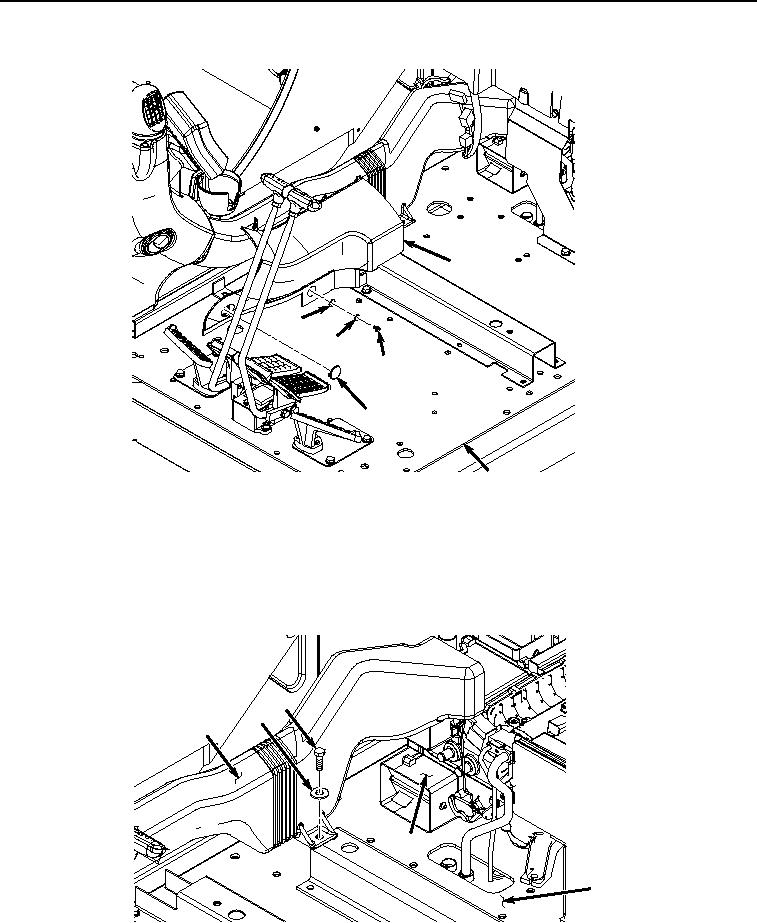

Figure 7. Cover Removal.
22.
Remove three screws (Figure 7, Item 38), lockwashers (Figure 7, Item 39), washers (Figure 7, Item 40), and
cover (Figure 7, Item 37) from cab (Figure 7, Item 41). Discard lockwashers.
23.
Remove screw (Figure 8, Item 42), washer (Figure 8, Item 43), and air conditioner/heater duct (Figure 8, Item
44) from air conditioner/heater unit (Figure 8, Item 45) and cab (Figure 8, Item 41).
42
43
44
45
41
HYEX02534
Figure 8. Duct Removal.
