TM 5-3805-294-23-4
FIELD MAINTENANCE
CAB FLOOR MAT REPLACEMENT
INITIAL SETUP:
Equipment Condition
Personnel Required
Machine safely parked and shut down
Construction Equipment Repairer 91L (1)
(TM 5-3805-294-10). (Volume 5, WP 0794)
References
TM 5-3805-294-24P: Fig. 109 (Volume 5,
Time to Complete
WP 0794)
0.2 Hour(s)
DA FORM 5988-E or DA FORM 2404 (Volume 5,
WP 0794)
REMOVAL
1.
Pull edges of floor mat (Figure 1, Item 1) away from operator's seat (Figure 1, Item 2) and from around foot
pedals (Figure 1, Item 3).
1
3
2

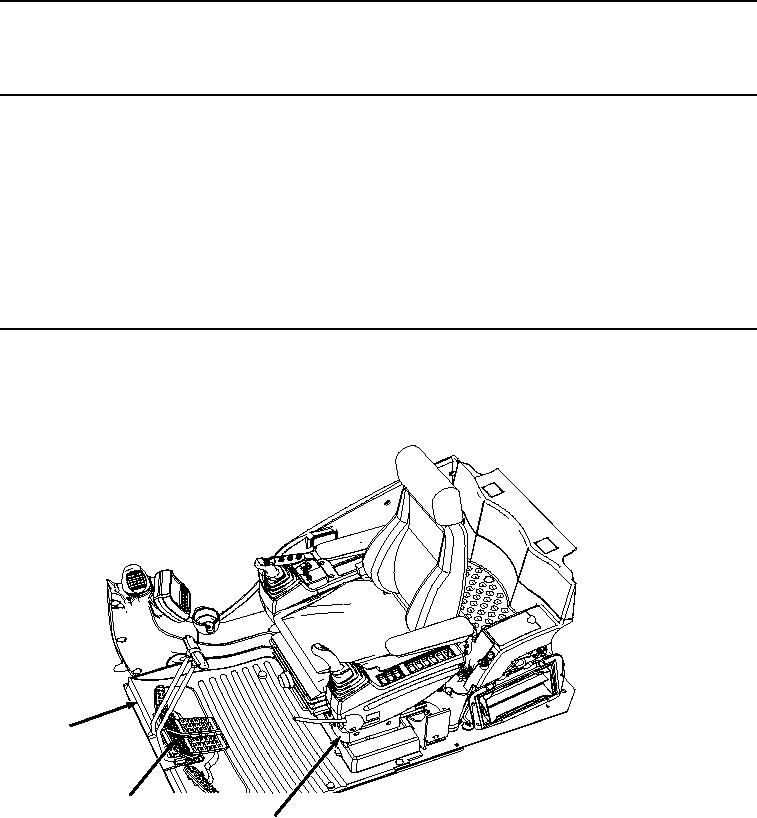

HYEX00225
Figure 1.
Cab Floor Mat Removal.
2.
Remove floor mat (Figure 1, Item 1) from cab.
END OF TASK
