TM 5-3805-294-23-4
0557
DISASSEMBLY - Continued
5.
Remove any pieces of broken glass or debris, and any remaining adhesive off window frame (Figure 3, Item
3).
END OF TASK
ASSEMBLY
WARNING
Replace broken window glass carefully. Wear a pair of heavy leather gloves or other suitable
hand protection. Support window glass during removal and installation, as required, so it does
not drop. Failure to comply may result in serious injury or death to personnel.
NOTE
Install glass as noted during removal.
1.
Lift window frame (Figure 4, Item 3) slightly at top center and install window (Figure 4, Item 10).
3
10
9
8
5
6
7
6
HYEX02645

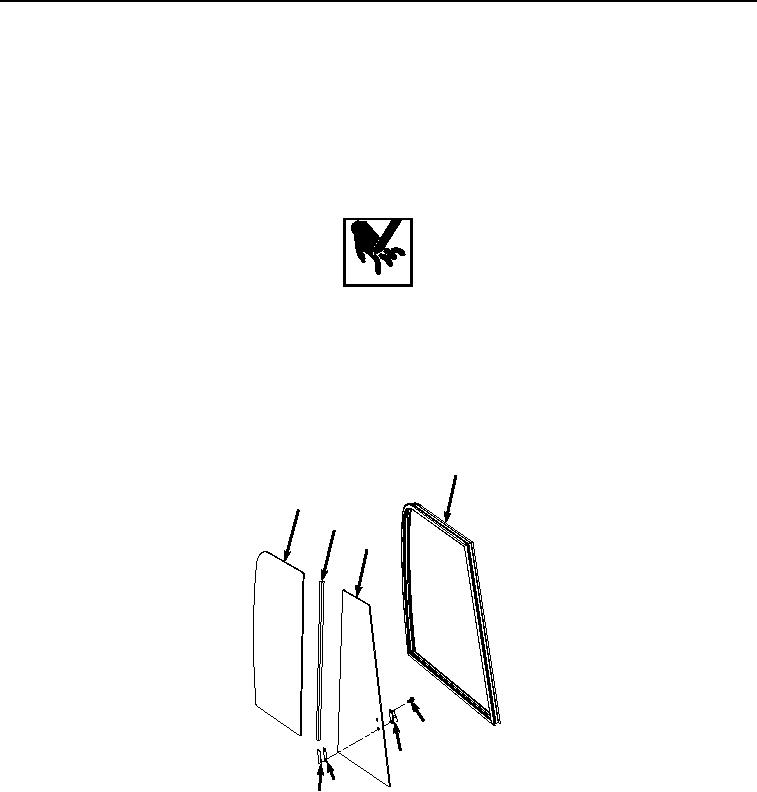

Figure 4. Window Frame Assembly.
2.
Lift window frame (Figure 4, Item 3) slightly at top center and install seal (Figure 4, Item 9).
3.
Lift window frame (Figure 4, Item 3) slightly at top center and install window (Figure 4, Item 8).
4.
Install latch assembly (Figure 4, Item 6) to window (Figure 4, Item 8) with two screws (Figure 4, Item 5) and
spacer (Figure 4, Item 7).
END OF TASK
0557-4
