REMOVAL - Continued
4
3
2
1
HYEX00351

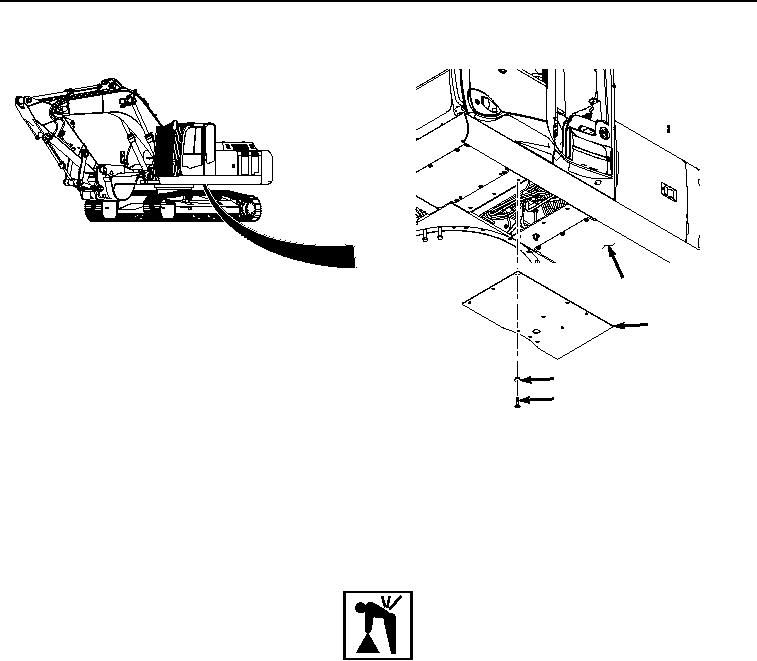

Figure 1. Cab Rear Lower Armor Plate Removal.
2.
With the aid of an assistant, remove armor plate (Figure 1, Item 3) from machine (Figure 1, Item 4).
END OF TASK
INSTALLATION
WARNING
Armor weighs approximately 145 lb (66 kg). Do not attempt to lift or move without the aid of
assistant and suitable lifting device. Failure to comply may result in injury or death to
personnel.
1.
With the aid of an assistant, position armor plate (Figure 2, Item 3) on machine (Figure 2, Item 4).
