INSTALLATION - Continued
6
8
7
3
1
2
4
5
HYEX00273

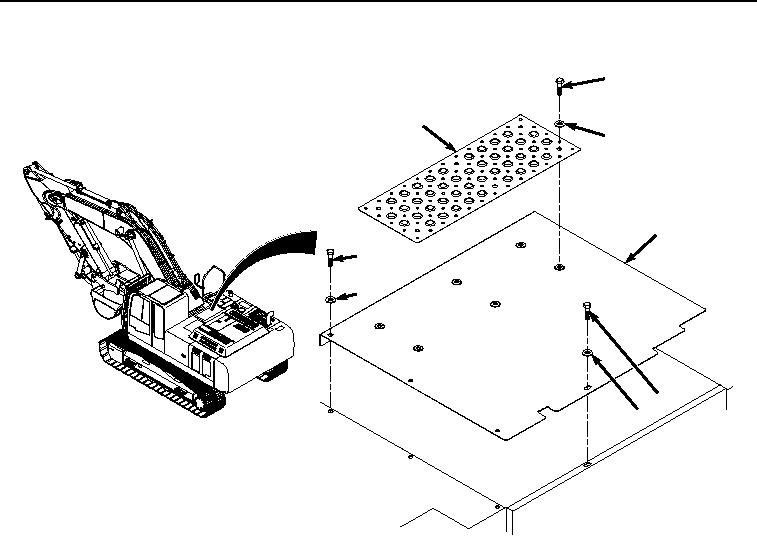

Figure 2. Center Top Cover Installation.
3.
With the aid of an assistant, install cover (Figure 2, Item 3) to machine and align bolt holes.
4.
Apply thread lock to threads of bolt (Figure 2, Item 4).
5.
Install bolt (Figure 2, Item 4) and washer (Figure 2, Item 5) to cover (Figure 2, Item 3).
6.
Apply thread lock to threads of three bolts (Figure 2, Item 1).
7.
Install three bolts (Figure 2, Item 1) and washers (Figure 2, Item 2) to cover (Figure 2, Item 3).
END OF TASK
FOLLOW-ON MAINTENANCE
Perform the Standard Follow-On Maintenance Instructions. (Volume 3, WP 0384)
END OF TASK
END OF WORK PACKAGE
