TM 5-3805-294-23-4
FIELD MAINTENANCE
COOLING COMPARTMENT LOWER ACCESS COVER REPLACEMENT
INITIAL SETUP:
Tools and Special Tools
Equipment Condition
Tool Kit, General Mechanic's: Automotive (Volume
Machine safely parked and shut down
5, WP 0796, Table 2, Item 119)
(TM 5-3805-294-10). (Volume 5, WP 0794)
Personnel Required
Time to Complete
Construction Equipment Repairer 91L (1)
0.2 Hour(s)
References
TM 5-3805-294-24P: Fig. 137 (Volume 5,
WP 0794)
DA FORM 5988-E or DA FORM 2404 (Volume 5,
WP 0794)
REMOVAL
1.
Remove six screws (Figure 1, Item 1) and washers (Figure 1, Item 2) from cover (Figure 1, Item 3) and machine
(Figure 1, Item 4).
4
3
2
1
HYEX00349

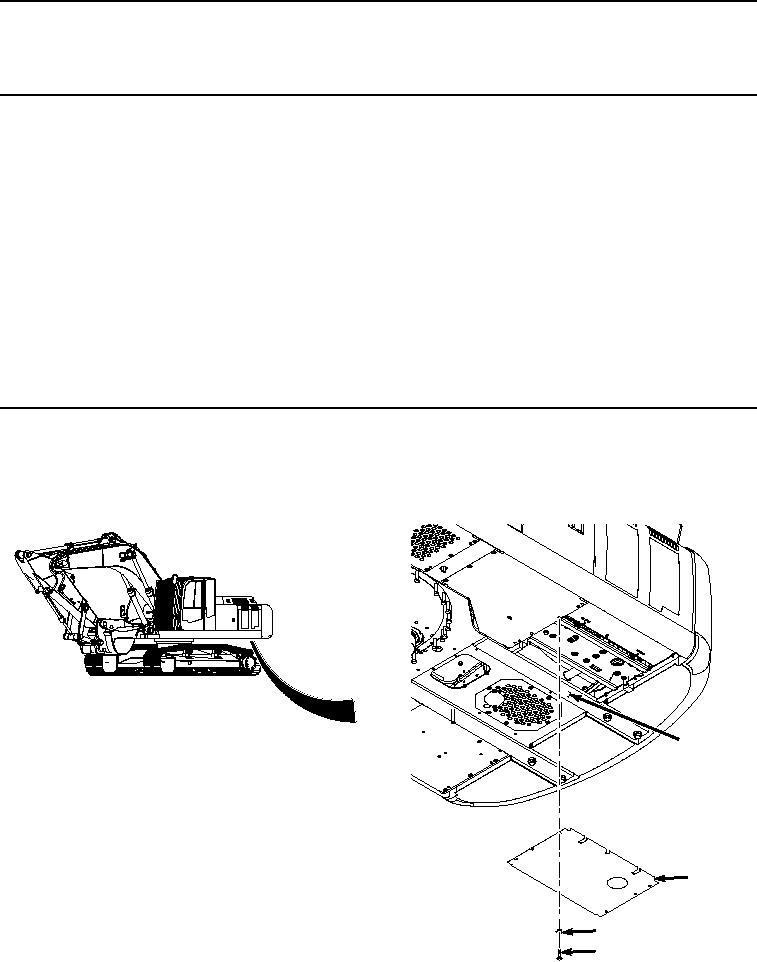

Figure 1.
Cooling Compartment Lower Access Cover Removal.
