TM 5-3805-294-23-4
0589
REMOVAL - Continued
6
8
7
3
1
2
4
5
HYEX00273

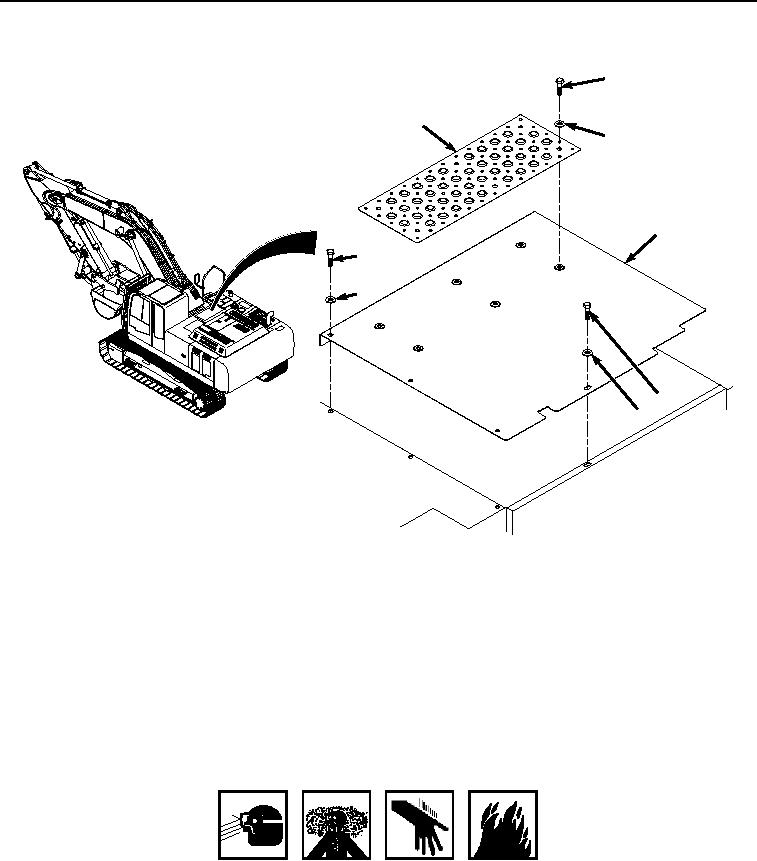

Figure 1.
Center Top Cover Removal.
2.
Remove bolt (Figure 1, Item 4) and washer (Figure 1, Item 5) from cover (Figure 1, Item 3).
3.
With the aid of an assistant, remove cover (Figure 1, Item 3) from machine.
4.
Remove six bolts (Figure 1, Item 6), six washers (Figure 1, Item 7), and cover (Figure 1, Item 8) from cover
(Figure 1, Item 3).
END OF TASK
INSTALLATION
WARNING
ADHESIVES AND SEALANTS
1.
Apply thread lock to threads of six bolts (Figure 2, Item 6).
2.
Install cover (Figure 2, Item 8) to cover (Figure 2, Item 3) with six bolts (Figure 2, Item 6) and six washers
(Figure 2, Item 7).
