ENGINE COVER INSTALLATION - Continued
2
1
8
9
10
HYEX02164

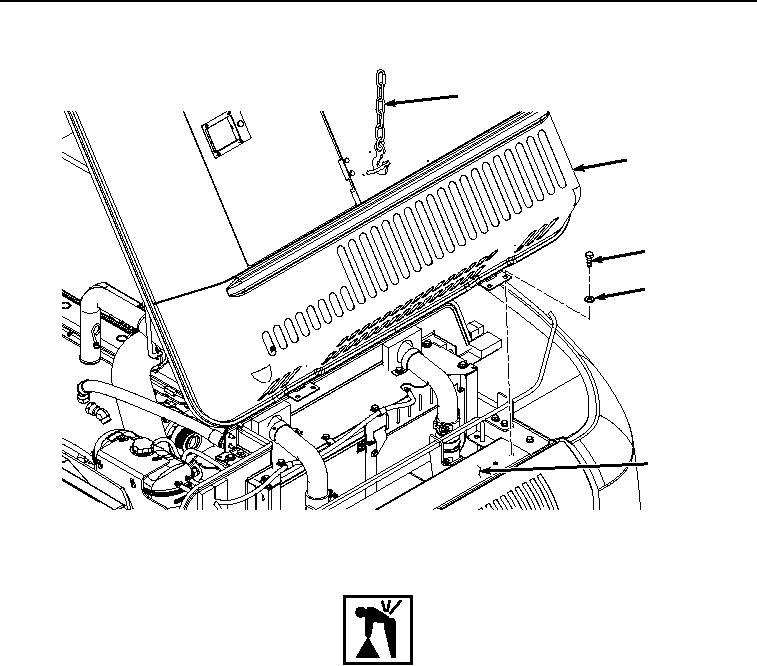

Figure 8. Engine Cover Installation.
WARNING
Engine cover weighs approximately 150 lb (68 kg). Do not attempt to lift or move engine cover
without the aid of an assistant and suitable lifting device. Failure to comply may result in injury
or death to personnel.
2.
With the aid of an assistant and suitable lifting device (Figure 8, Item 2), position engine cover (Figure 8, Item
1) on cover (Figure 8, Item 10).
3.
Install engine cover (Figure 8, Item 1) on cover (Figure 8, Item 10) with four bolts (Figure 8, Item 8) and washers
(Figure 8, Item 9).
4.
Install rod (Figure 9, Item 6) on bracket (Figure 9, Item 7) with washer (Figure 9, Item 5), washer (Figure 9,
Item 4), and cotter pin (Figure 9, Item 3).
