TM 5-3805-294-23-4
0487
REMOVAL - Continued
CAUTION
Wipe area clean around all fluid connections prior to removal. Cap and plug all hoses, lines,
fittings, and ports during removal to prevent contamination of system components. Systems
must be kept clean from contaminants. Failure to comply may result in damage to equipment.
NOTE
Place drain pan under hoses being removed.
1.
Remove oil filter (Figure 1, Item 1) and seal (Figure 1, Item 2) from oil filter head (Figure 1, Item 3). Discard oil
filter and seal.
3
2
1
HYEX01057

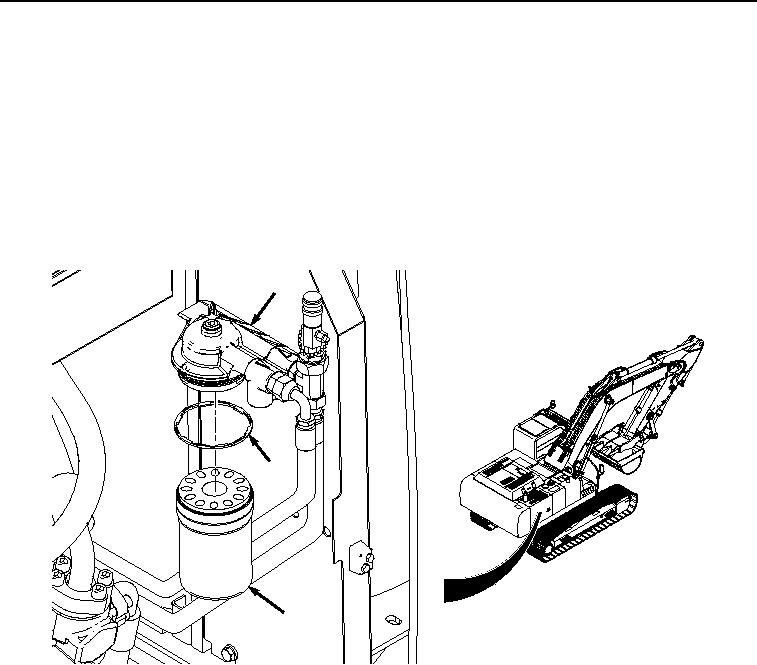

Figure 1. Engine Oil Filter Removal.
2.
Remove oil line (Figure 2, Item 4) and O-ring (Figure 2, Item 5) from fitting (Figure 2, Item 6). Discard O-ring.
