TM 5-3805-294-23-4
0487
REMOVAL - Continued
15
3
16
17
HYEX02841

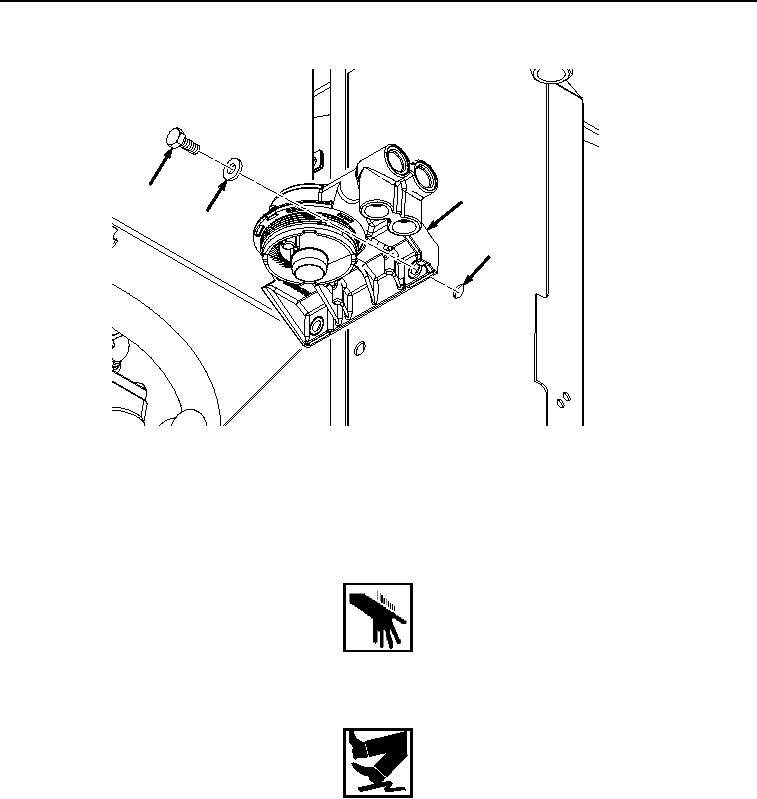

Figure 4. Engine Oil Filter Head Removal.
END OF TASK
INSTALLATION
WARNING
WARNING
Oil is slippery and can cause falls. To avoid injury, wipe up spilled oil immediately. Failure to
comply may result in injury or death to personnel.
NOTE
Install tie wraps as required.
1.
Install oil filter head (Figure 5, Item 3) to panel (Figure 5, Item 17) with two bolts (Figure 5, Item 15) and washers
(Figure 5, Item 16).
