TM 5-3805-294-23-4
0488
REMOVAL - Continued
CAUTION
Wipe area clean around all fluid connections prior to removal. Cap and plug all hoses, lines,
fittings, and ports during removal to prevent contamination of system components. Systems
must be kept clean from contaminants. Failure to comply may result in damage to equipment.
NOTE
Position drain pan under oil sampling valve.
1.
Remove valve (Figure 1, Item 1) from fitting (Figure 1, Item 2).
1
2
EN
G
SA INE
MP O
LE IL
VA
LV
E
4
3
6
5
HYEX01892

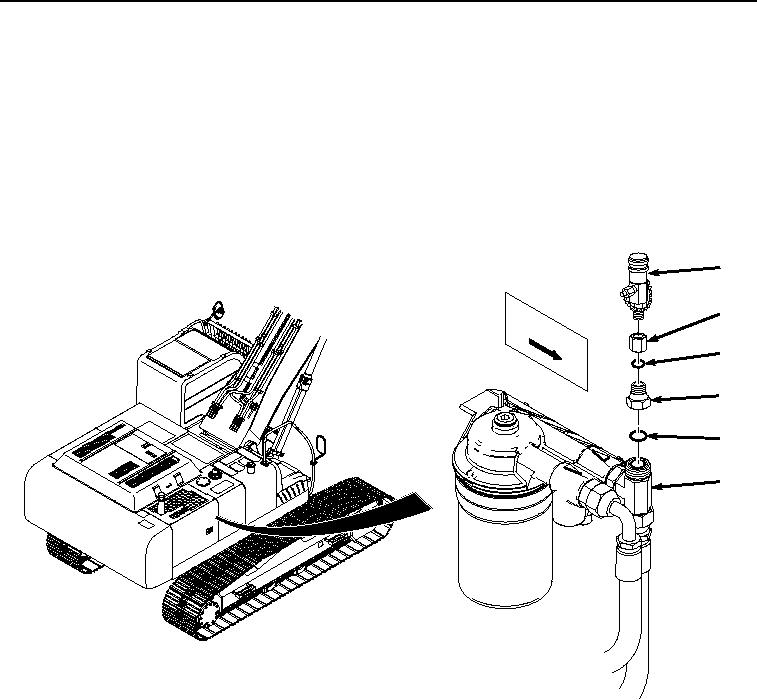

Figure 1. Engine Oil Sampling Valve Removal.
2.
Remove fitting (Figure 1, Item 2) from fitting (Figure 1, Item 3).
3.
Remove O-ring (Figure 1, Item 4) from fitting (Figure 1, Item 3). Discard O-ring.
4.
Remove fitting (Figure 1, Item 3) from fitting (Figure 1, Item 5).
5.
Remove O-ring (Figure 1, Item 6) from fitting (Figure 1, Item 5). Discard O-ring.
END OF TASK
