TM 5-3805-294-23-4
0518
REMOVAL - Continued
15
14
13
12
11
16
2
HYEX00279

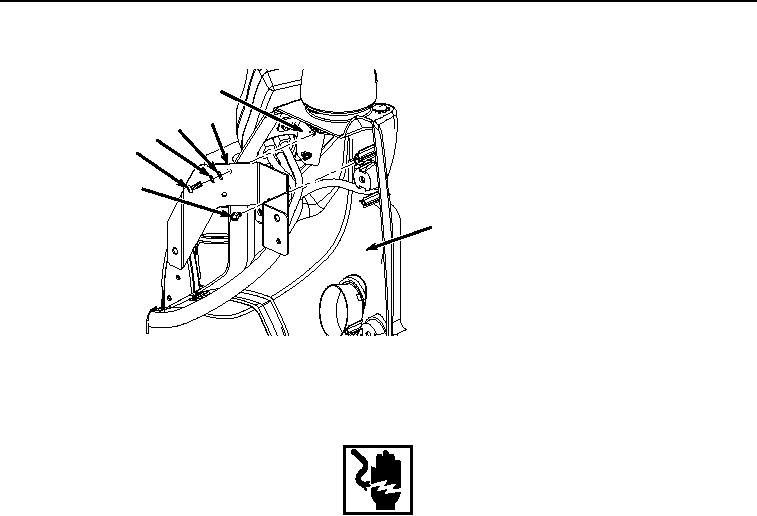

Figure 3. Bracket Removal.
7.
Remove two screws (Figure 3, Item 16) and bracket (Figure 3, Item 14) from cover (Figure 3, Item 2).
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
8.
Hold monitor (Figure 4, Item 17) from front of cover (Figure 4, Item 2) and disconnect monitor controller wiring
harness W3 connectors X19 (Figure 4, Item 18), X20 (Figure 4, Item 19), and X21 (Figure 4, Item 20) from
monitor (Figure 4, Item 17).
