INSTALLATION - Continued
3
26
23
25
24
22
21
HYEX00514

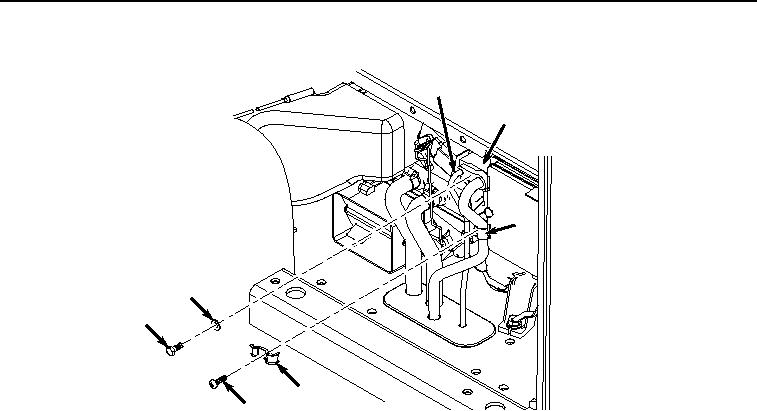

Figure 8.
Clamp Installation.
9.
Install clamp (Figure 8, Item 22) to hose (Figure 8, Item 3) and hose (Figure 8, Item 23) with screw (Figure 8,
Item 21).
10.
Install cover (Figure 9, Item 16) to floor (Figure 9, Item 17) and bracket (Figure 9, Item 20) with bolt (Figure 9,
Item 18) and washer (Figure 9, Item 19).
