TM 5-3805-294-23-4
0539
INSTALLATION - Continued
16
17
14
15
HYEX00512

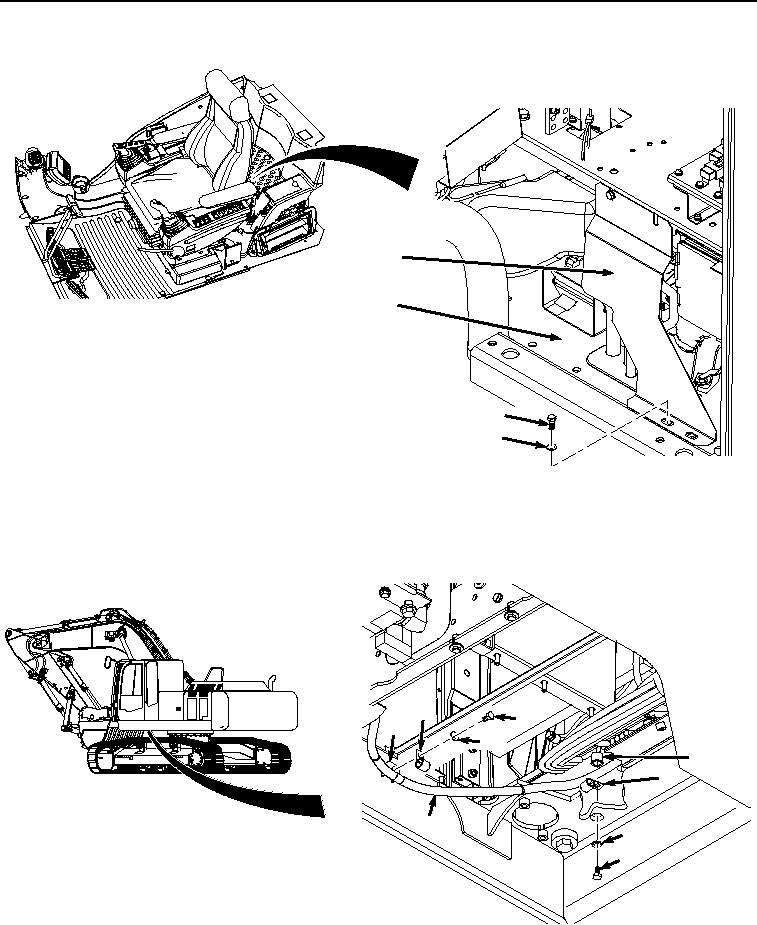

Figure 10. Screw Installation.
12.
Install clamp (Figure 11, Item 12) to hose (Figure 11, Item 3) and bracket (Figure 11, Item 13) with bolt (Figure
11, Item 10) and washer (Figure 11, Item 11).
8
6
9
7
13
12
3
11
10
HYEX00532
Figure 11. Clamps Installation.
