TM 5-3805-294-23-4
0548
REMOVAL
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
1.
Remove right-hand console wiring harness W11 connector M9 (Figure 1, Item 1) from servo motor (Figure 1,
Item 2).
2
1
HYEX02170

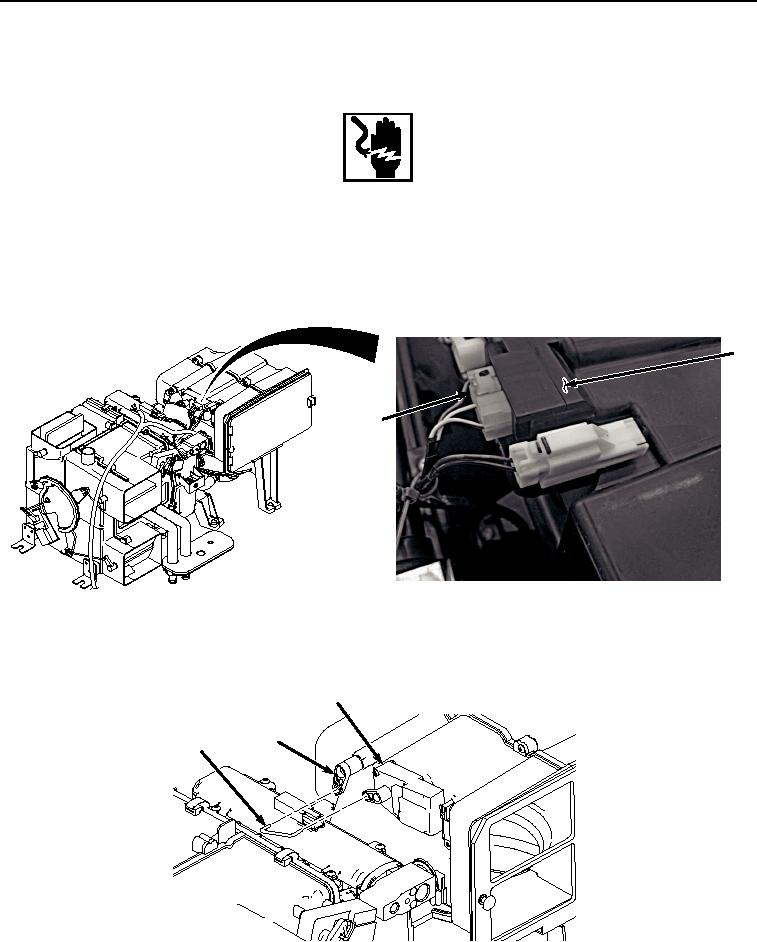

Figure 1.
Wiring Harness Removal.
2.
Remove rod (Figure 2, Item 3) from lever (Figure 2, Item 4) and servo motor (Figure 2, Item 2).
2
4
3
HYEX02168
Figure 2.
Rod Removal.
