REMOVAL - Continued
3.
Remove two screws (Figure 3, Item 5) and servo motor (Figure 3, Item 2) from air conditioner/heater unit
(Figure 3, Item 6).
6
2
5
HYEX02169

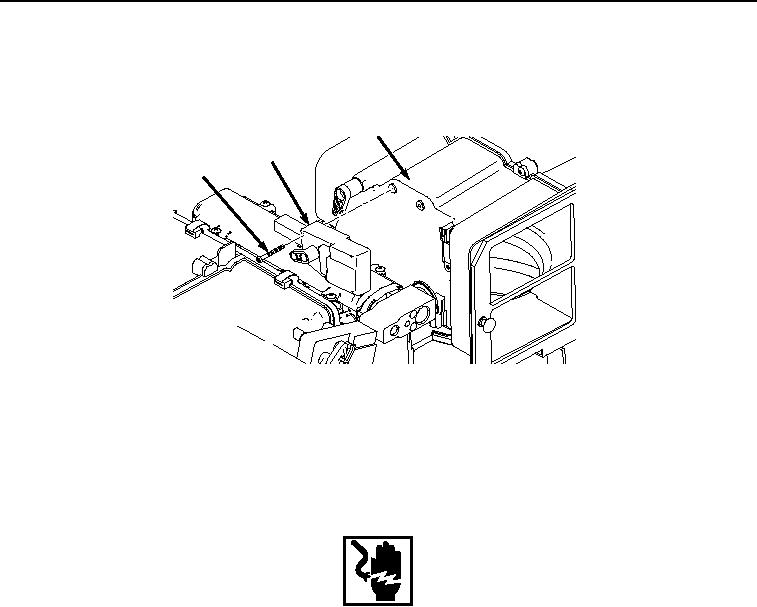

Figure 3. Servo Motor Removal.
END OF TASK
INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
1.
Install servo motor (Figure 4, Item 2) to air conditioner/heater unit (Figure 4, Item 6) with two screws (Figure
4, Item 5).
