WINDSHIELD ASSEMBLY INSTALLATION - Continued
8
6, 7
3
9
10
HYEX02905

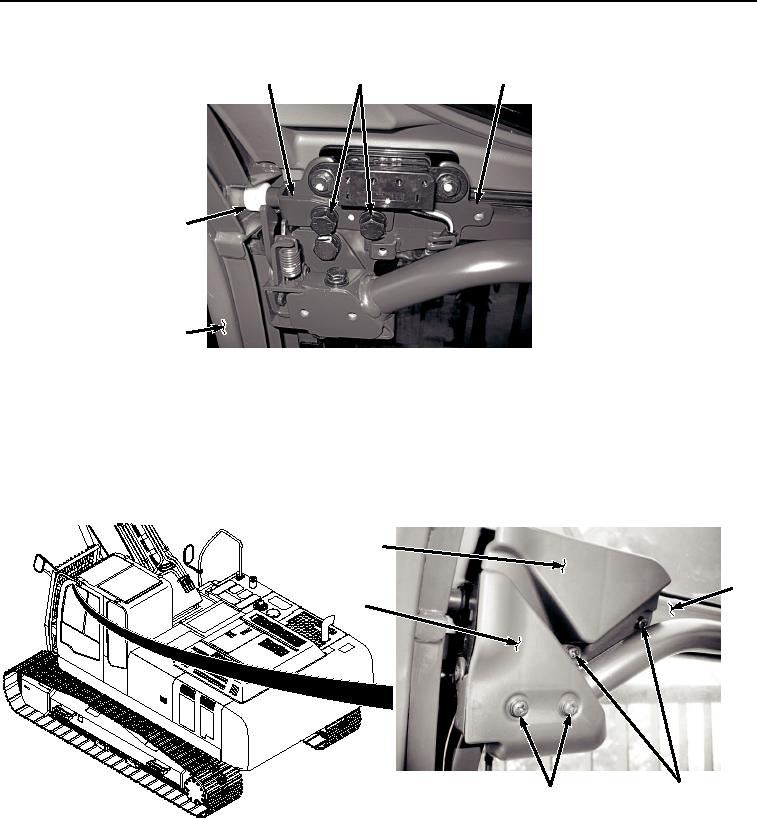

Figure 13.
Windshield Assembly Brackets Installation.
2.
Apply thread lock to threads of four bolts (Figure 13, Item 6).
3.
Install two brackets (Figure 13, Item 8) and rollers (Figure 13, Item 9) to windshield assembly (Figure 13, Item
3) with four bolts (Figure 13, Item 6) and washers (Figure 13, Item 7).
4.
Install two covers (Figure 14, Item 5) to windshield assembly (Figure 14, Item 3) with four screws (Figure 14,
Item 4).
2
3
5
1
4
HYEX02773
Figure 14. Windshield Assembly Covers Installation.
5.
Install two covers (Figure 14, Item 2) to windshield assembly (Figure 14, Item 3) with four screws (Figure 14,
Item 1).
END OF TASK
