HARNESS REMOVAL
5
15
10
HYEX01762

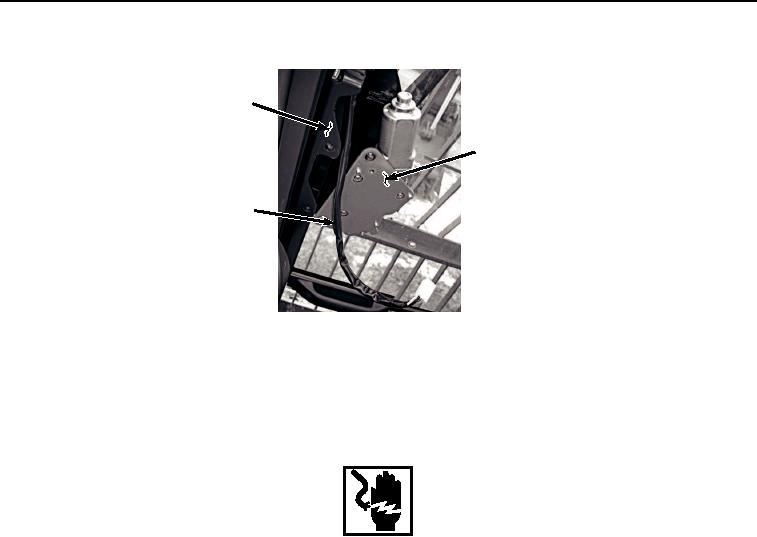

Figure 5.
Harness Removal.
END OF TASK
INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Tag and mark wires, connectors, and wiring harnesses prior to removal to ensure proper
installation.
Install tie wraps as required.
1.
Install windshield wiper motor windshield assembly wiring harness (Figure 6, Item 10) along frame (Figure 6,
Item 5) and move windshield wiper motor assembly (Figure 6, Item 15) into position.
