INSTALLATION - Continued
8
6
6
HYEX01757

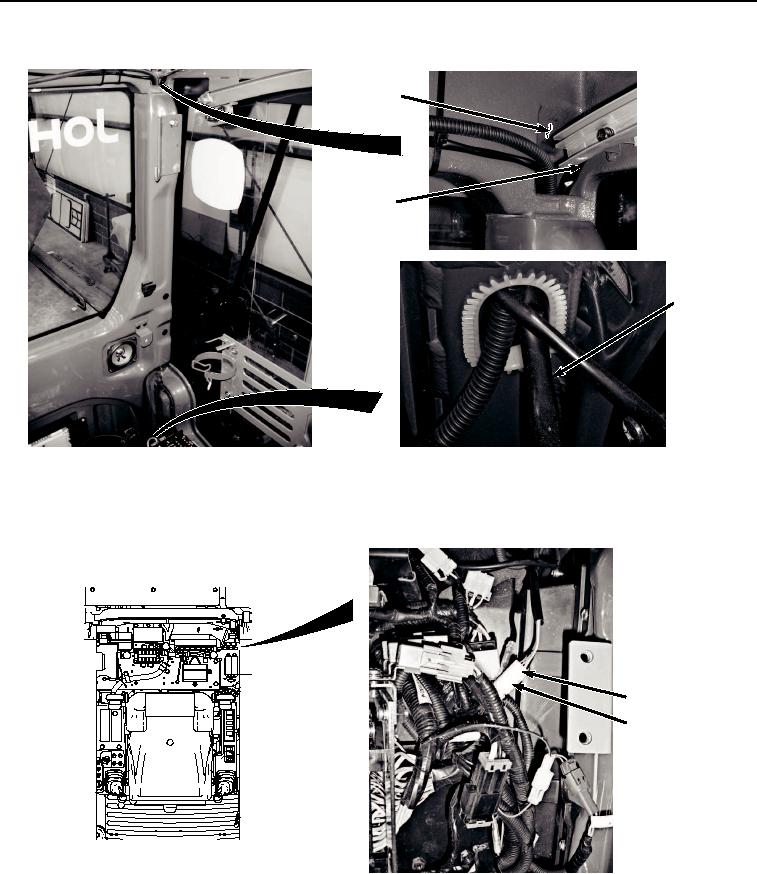

Figure 4. Left Rear Pillar, Upper and Lower Hole.
2.
Connect cab wiring harness W1 connector M5 (Figure 5, Item 7) to windshield wiper motor wiring harness
connector M5 (Figure 5, Item 6).
6
7
HYEX01756
Figure 5. Cab Wiring Harness W1 Connect.
3.
Install bracket (Figure 6, Item 3) and bracket (Figure 6, Item 4) to frame (Figure 6, Item 5) with four washers
(Figure 6, Item 2) and screws (Figure 6, Item 1).
