Figure 4. Spray Nozzle Installation.
RESERVOIR AND PUMP INSTALLATION

Maintenance Manual For Hydraulic Excavator Type 1 With Hydraulic Thumb And Quick Latch -4 Page Navigation
  731    732    733    734    735  736  737    738    739    740    741
.
TM 5-3805-294-23-4
0584
RESERVOIR AND PUMP INSTALLATION - Continued
5
8
7
4
6
2
HYEX00635

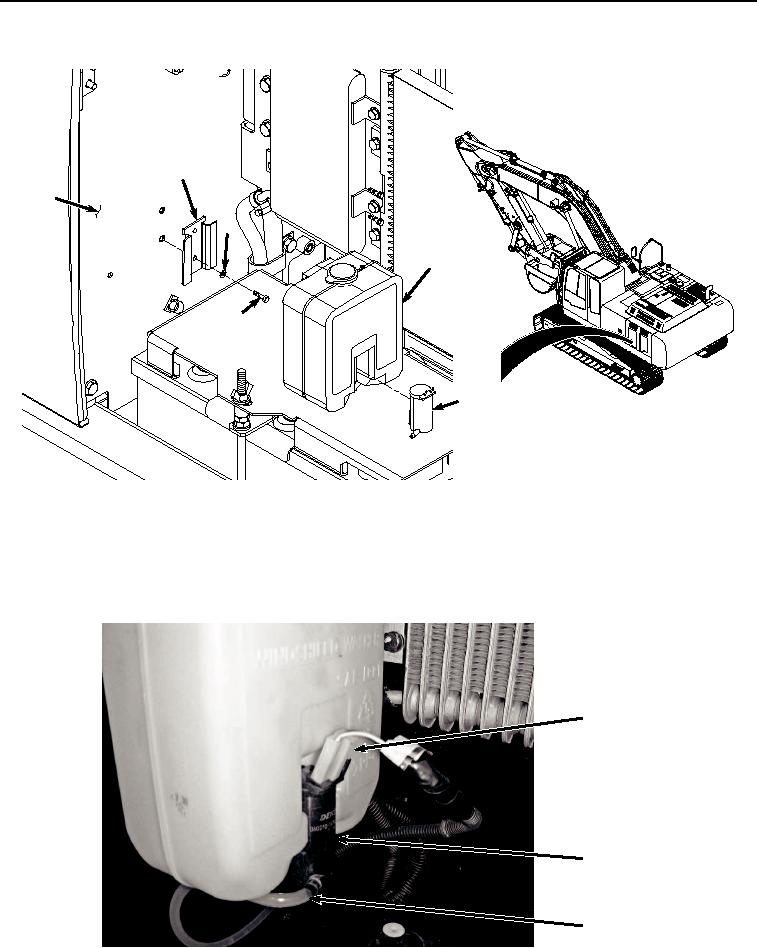

Figure 5.
Reservoir and Pump Installation.
2.
Install pump (Figure 5, Item 2) to reservoir (Figure 5, Item 4).
3.
Install reservoir (Figure 5, Item 4) to bracket (Figure 5, Item 5).
4.
Install hose (Figure 6, Item 3) to pump (Figure 6, Item 2).
1
2
3
HYEX01110
Figure 6.
Connect Wiring Harness and Hose.
0584-6
