HARNESS REMOVAL - Continued
1
2
4
3
5
HYEX01755

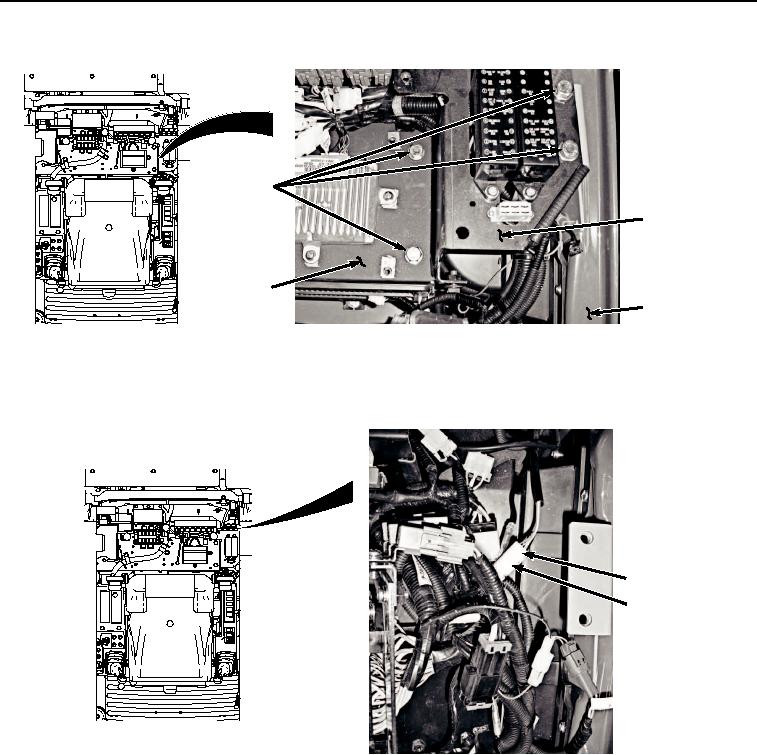

Figure 1. Bracket Removal.
2.
Disconnect windshield wiper motor wiring harness connector M5 (Figure 2, Item 6) from cab wiring harness
W1 connector M5 (Figure 2, Item 7).
6
7
HYEX01756
Figure 2. Cab Wiring Harness W1 Disconnect.
NOTE
Tie twine to end of windshield wiper motor wiring harness connector M5, to aid in installation.
3.
Pull windshield wiper motor wiring harness connector M5 (Figure 3, Item 6) up and out through pillar (Figure
3, Item 8).
