HARNESS REMOVAL - Continued
4
5
1, 2, 3
HYEX01758

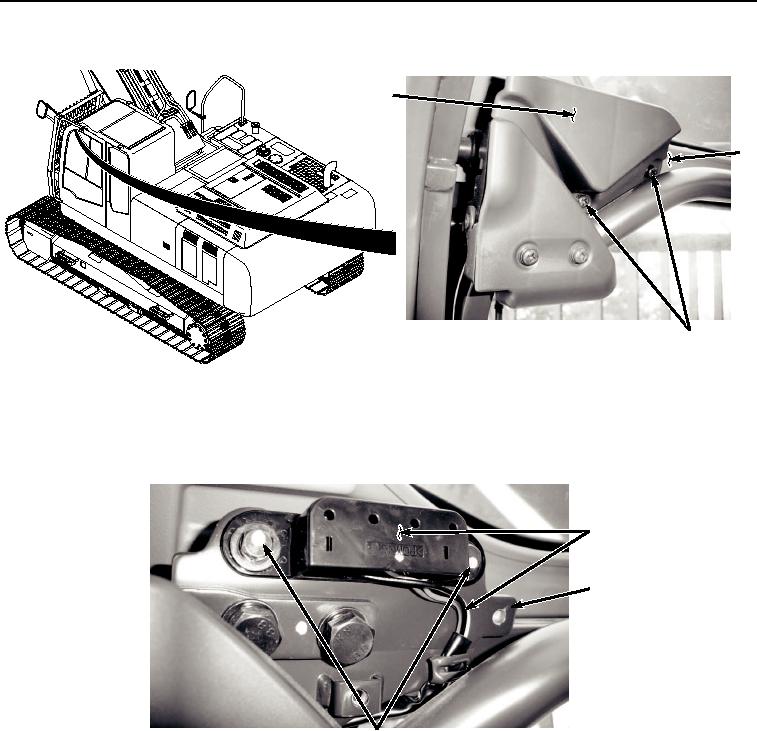

Figure 1. Cover Removal.
2.
Remove two bolts (Figure 2, Item 6), lockwashers (Figure 2, Item 7), washers (Figure 2, Item 8), washers
(Figure 2, Item 9), and windshield wiper motor windshield assembly wiring harness (Figure 2, Item 10) from
frame (Figure 2, Item 5). Discard bolts.
10
5
6, 7, 8, 9
HYEX01759
Figure 2.
Electrical Connector Removal.
3.
Remove two screws (Figure 3, Item 11), lockwashers (Figure 3, Item 12), washers (Figure 3, Item 13), and
cover (Figure 3, Item 14) from windshield wiper motor assembly (Figure 3, Item 15). Discard screws.
