TM 5-3805-294-23-4
0585
HARNESS REMOVAL - Continued
8
6
6
HYEX01757

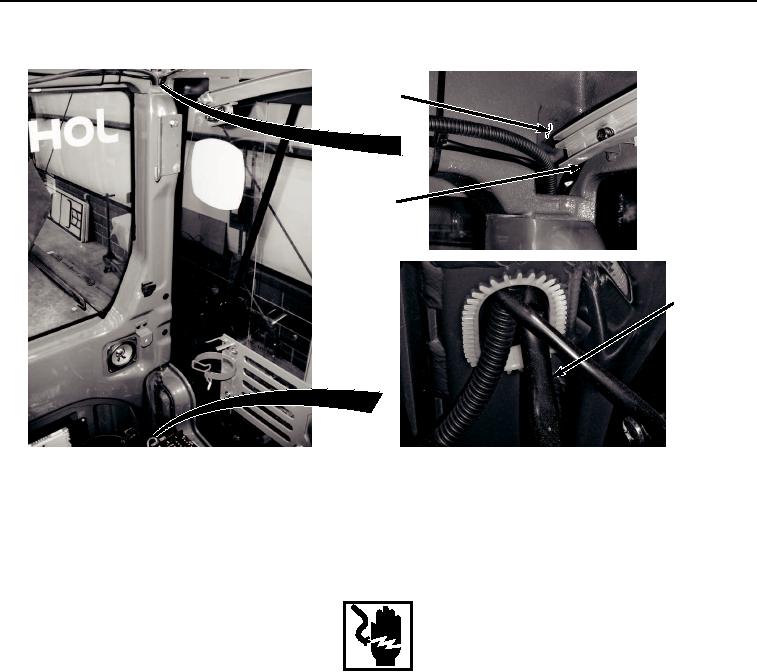

Figure 3. Left Rear Pillar, Upper and Lower Hole.
END OF TASK
INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install wires, connectors, and wiring harnesses as noted prior to removal.
Install tie wraps as required.
Use twine from removal to route wiper motor wiring harness connector M5.
1.
Insert windshield wiper motor wiring harness connector M5 (Figure 4, Item 6) into upper hole of pillar (Figure
4, Item 8) and pull out through lower hole.
