TM 5-3805-294-23-4
FIELD MAINTENANCE
HYDRAULIC RESERVOIR COVER REPLACEMENT
INITIAL SETUP:
Tools and Special Tools
Equipment Condition
Tool Kit, General Mechanic's: Automotive
Machine safely parked and shut down
(Volume 5, WP 0796, Table 2, Item 119)
(TM 5-3805-294-10). (Volume 5, WP 0794)
Hydraulic reservoir lower access cover removed.
Personnel Required
Construction Equipment Repairer 91L (1)
Time to Complete
0.5 Hour(s)
References
TM 5-3805-294-24P: Fig. 134 (Volume 5,
WP 0794)
DA FORM 5988-E or DA FORM 2404 (Volume 5,
WP 0794)
REMOVAL
1.
Remove two screws (Figure 1, Item 1) and washers (Figure 1, Item 2) from cover (Figure 1, Item 3) and machine
(Figure 1, Item 4).
1
2
1
2
4
3
6
6
HYEX00334
5
5

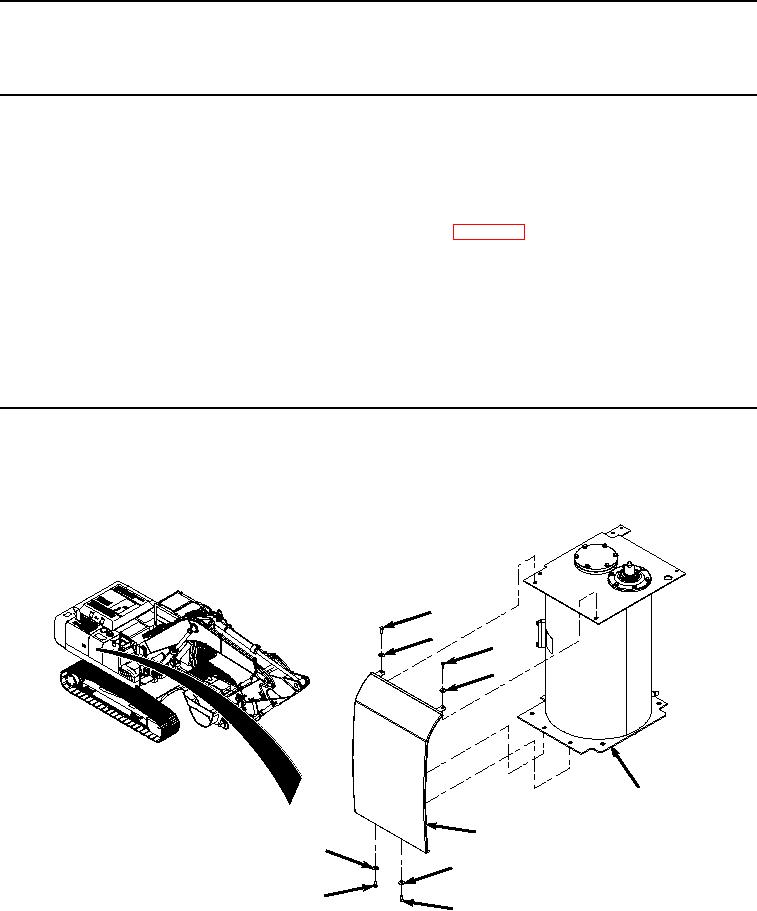

Figure 1.
Reservoir Cover Removal.
