TM 5-3805-294-23-4
0618
INSTALLATION - Continued
1.

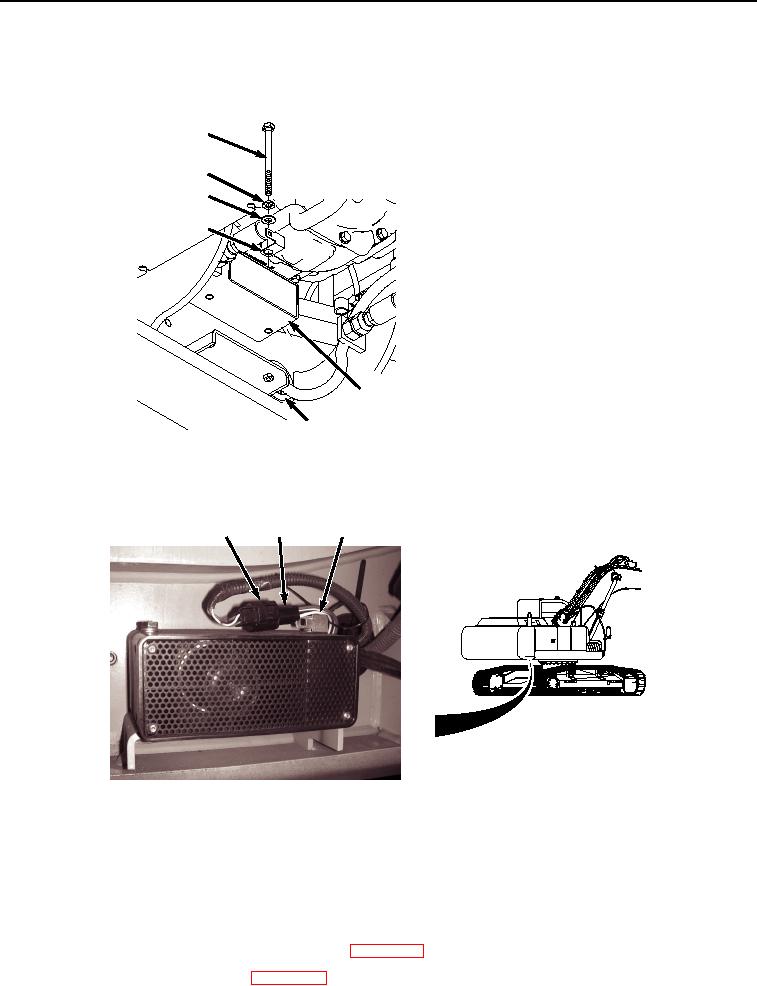

Install travel alarm (Figure 3, Item 7) to frame (Figure 3, Item 8) with bracket holder (Figure 3, Item 3), two
washers (Figure 3, Item 6), lockwashers (Figure 3, Item 5), and screws (Figure 3, Item 4).
4
5
6
3
7
8
HYEX00889
Figure 3.
Travel Alarm Installation.
2.
Install travel alarm electrical connector (Figure 4, Item 2) to bracket holder (Figure 4, Item 3).
2
1
3
HYEX00271
Figure 4.
Connect Wiring Harness.
3.
Connect wiring harness connector H4 (Figure 4, Item 1) to travel alarm electrical connector (Figure 4, Item 2).
END OF TASK
FOLLOW ON MAINTENANCE
1.
Install pump compartment lower access cover. (WP 0601)
2.
Connect negative battery cable. (WP 0521)
0618-3
