TM 5-3805-294-23-4
0633
LEFT SIDE UPPER LINE REMOVAL - Continued
21
24
23
15
22
21
21
20
28
29
30
21
21
25
HYEX01751
27 26

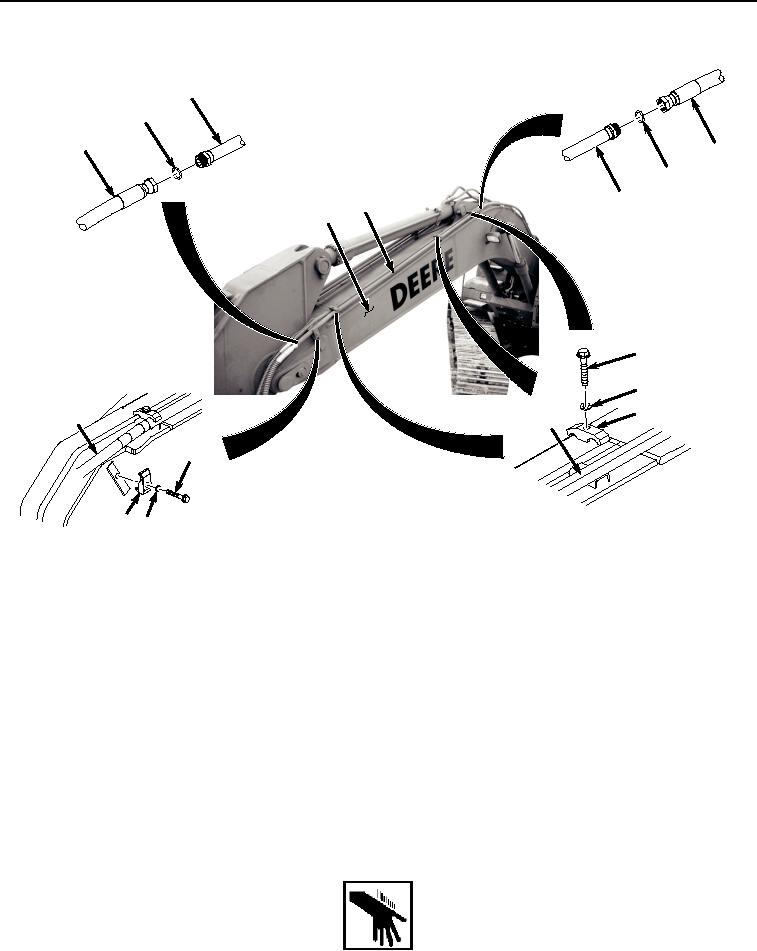

Figure 2.
Left Side Upper Line Removal.
2.
Remove O-ring (Figure 2, Item 22) from line (Figure 2, Item 21). Discard O-ring.
3.
Remove hose (Figure 2, Item 23) from line (Figure 2, Item 21).
4.
Remove O-ring (Figure 2, Item 24) from line (Figure 2, Item 21). Discard O-ring.
5.
Remove screw (Figure 2, Item 25), washer (Figure 2, Item 26), and clamp (Figure 2, Item 27) from line (Figure
2, Item 21).
6.
Remove three bolts (Figure 2, Item 28), washers (Figure 2, Item 29), and clamps (Figure 2, Item 30) from line
(Figure 2, Item 21).
7.
Remove line (Figure 2, Item 21) from boom (Figure 2, Item 20).
END OF TASK
RIGHT SIDE LOWER LINE REMOVAL
WARNING
