TM 5-3805-294-23-4
0633
RIGHT SIDE UPPER LINE INSTALLATION
WARNING
NOTE
Install hoses and position fittings as noted prior to removal.
Install clamps as noted prior to removal.
1.
Install line (Figure 5, Item 43) to boom (Figure 5, Item 20) with three bolts (Figure 5, Item 50), washers (Figure
5, Item 51), clamps (Figure 5, Item 52), flanges (Figure 5, Item 53), and clamps (Figure 5, Item 54).
50
44
51
43
52
43
46
36
45
53
54
43
43
20
43
47
HYEX01753
48 49

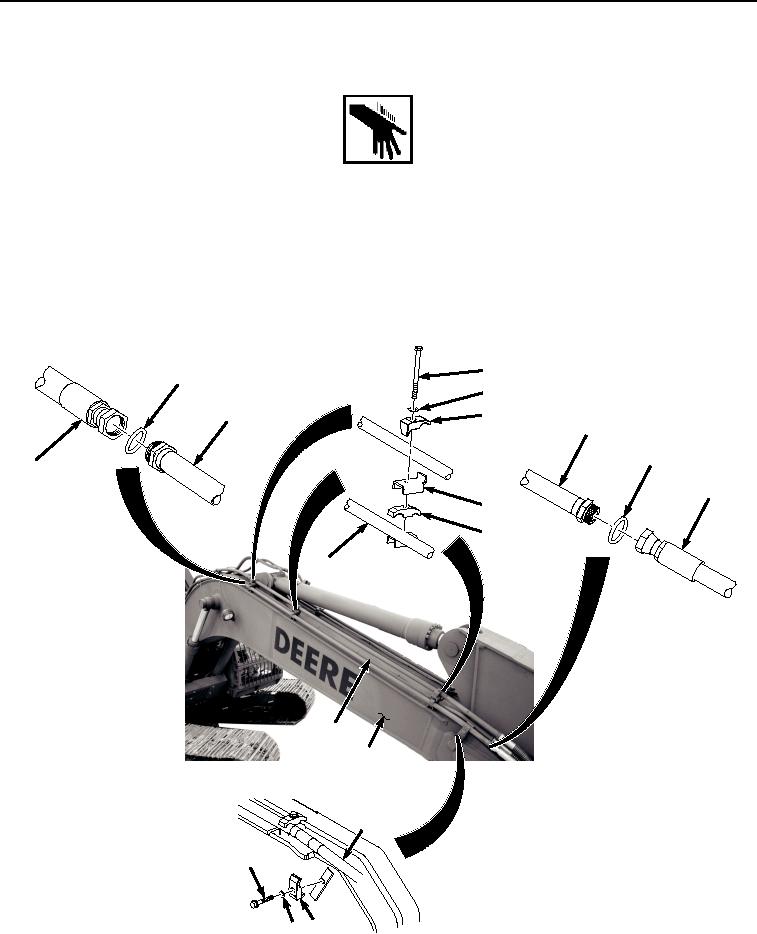

Figure 5. Right Side Upper Line Installation.
