TM 5-3805-294-23-4
0651
REMOVAL - Continued
1
7
2
4
6
9
5
3
9
2
8
9
HYEX00588

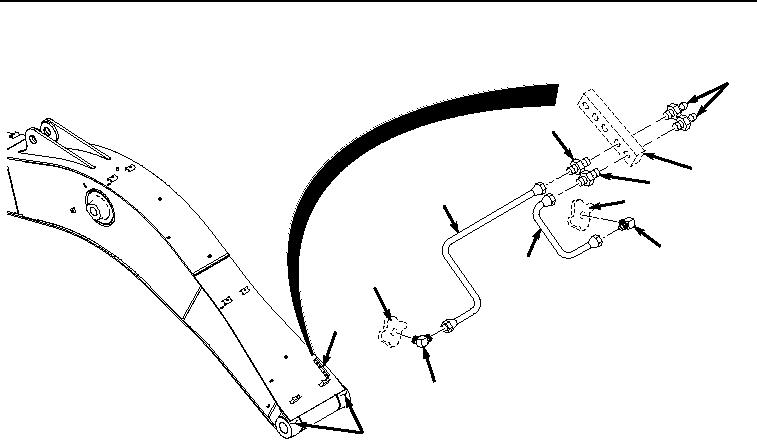

Figure 1. Lower Lines Removal.
2.
Remove line (Figure 1, Item 3) from fittings (Figure 1, Item 4) and (Figure 1, Item 5).
3.
Remove line (Figure 1, Item 6) from fittings (Figure 1, Item 7) and (Figure 1, Item 8).
4.
Remove two fittings (Figure 1, Item 4) and (Figure 1, Item 7) from boom weldment (Figure 1, Item 2).
5.
Remove two fittings (Figure 1, Item 5) and (Figure 1, Item 8) from boom (Figure 1, Item 9).
6.
Remove four bolts (Figure 2, Item 10), washers (Figure 2, Item 11), and cushion clamps (Figure 2, Item 12)
from lines (Figure 2, Item 13), (Figure 2, Item 14), (Figure 2, Item 15), and four weldments (Figure 2, Item 16).
