TM 5-3805-294-23-4
0507
CRUSH-ALL BOOM WIRING HARNESS REMOVAL - Continued
19
14
12
16
18
17
HYEX01790

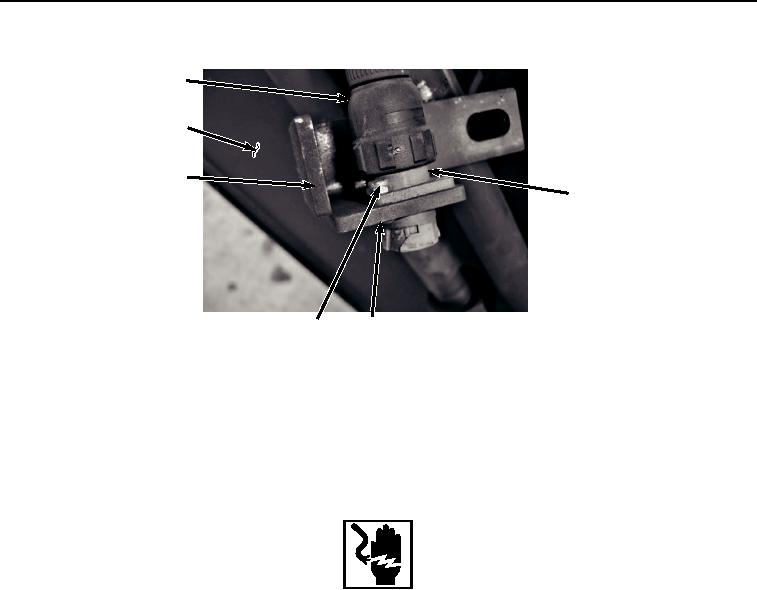

Figure 5. Connector and Harness Removal.
6.
Remove crush-all boom wiring harness (Figure 5, Item 19) from arm (Figure 5, Item 14).
END OF TASK
CRUSH-ALL BOOM WIRING HARNESS INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install each tie wrap as noted during removal.
Crush-all boom wiring harness is routed up the main boom, through the pivot joint (right
side) and down to the end of the arm.
1.
Position crush-all boom wiring harness (Figure 6, Item 19) on arm (Figure 6, Item 14).
