TM 5-3805-294-23-4
0507
CRUSH-ALL BOOM WIRING HARNESS INSTALLATION - Continued
4
3
5
6
HYEX03267

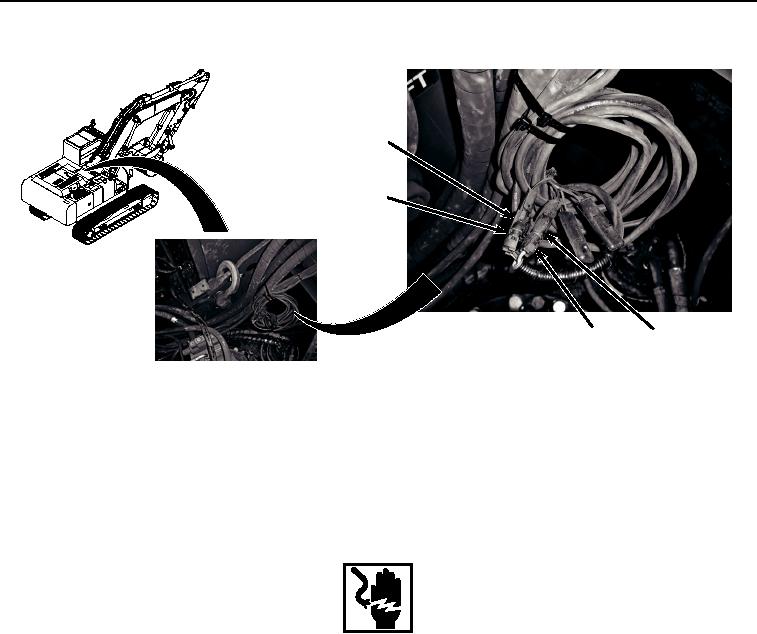

Figure 8.
Connect Wiring Harness To Crush-All Main Body Wiring Harness.
6.
Connect crush-all main body wiring harness connector Z2 (Figure 8, Item 3) to crush-all boom wiring harness
connector Z2 (Figure 8, Item 4).
END OF TASK
CRUSH-ALL MAIN BODY WIRING HARNESS INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install each tie wrap as noted during removal.
Crush-all main body wiring harness is routed along with the machine wiring harness (W2)
from behind cab to the inside of the main frame.
1.
Position crush-all main body wiring harness (Figure 9, Item 7) on machine (Figure 9, Item 8).
