TM 5-3805-294-23-4
0507
CRUSH-ALL BOOM WIRING HARNESS REMOVAL - Continued
4
3
5
6
HYEX03267

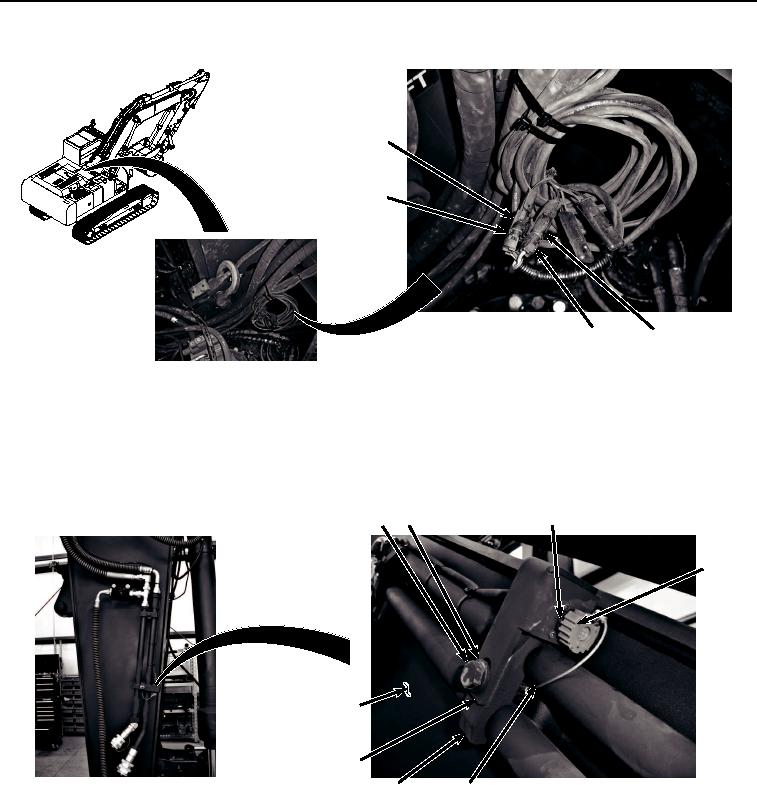

Figure 3. Disconnect Wiring Harness From Crush-All Boom Wiring Harness.
2.
Disconnect crush-all main body wiring harness connector Z1 (Figure 3, Item 5) from crush-all boom wiring
harness connector Z1 (Figure 3, Item 6).
3.
Remove bolt (Figure 4, Item 9), washer (Figure 4, Item 10), lanyard (Figure 4, Item 11), mounting bracket
(Figure 4, Item 12), and bracket (Figure 4, Item 13) from arm (Figure 4, Item 14).
10
16
9
15
14
12
13
11
HYEX01789
Figure 4. Brackets Removal.
4.
Remove cover (Figure 4, Item 15) from electrical connector Z3 (Figure 4, Item 16).
5.
Remove four screws (Figure 5, Item 17) and nuts (Figure 5, Item 18) from mounting bracket (Figure 5, Item
12) and electrical connector Z3 (Figure 5, Item 16).
