CAN TERMINATING RESISTOR REPLACEMENT

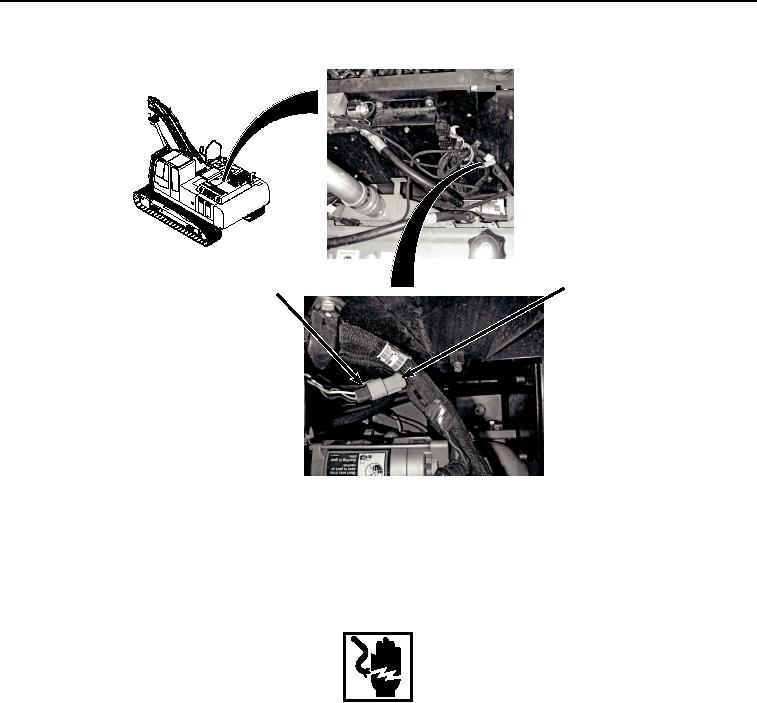

Figure 2. CAN Terminating Resistor Installation.

Maintenance Manual For Hydraulic Excavator Type 1 With Hydraulic Thumb And Quick Latch -4 Page Navigation
  135    136    137    138    139  140  141    142    143    144    145
.
TM 5-3805-294-23-4
0506
REMOVAL - Continued
1
2
HYEX03617
Figure 1. CAN Terminating Resistor Removal.
END OF TASK
INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install tie wraps as required.
Install CAN terminating resistor (Figure 2, Item 1) to engine Interface wiring harness connector R10 (Figure 2,
Item 2).
0506-2
