CRUSH-ALL BOOM WIRING HARNESS INSTALLATION - Continued
19
14
12
16
18
17
HYEX01790

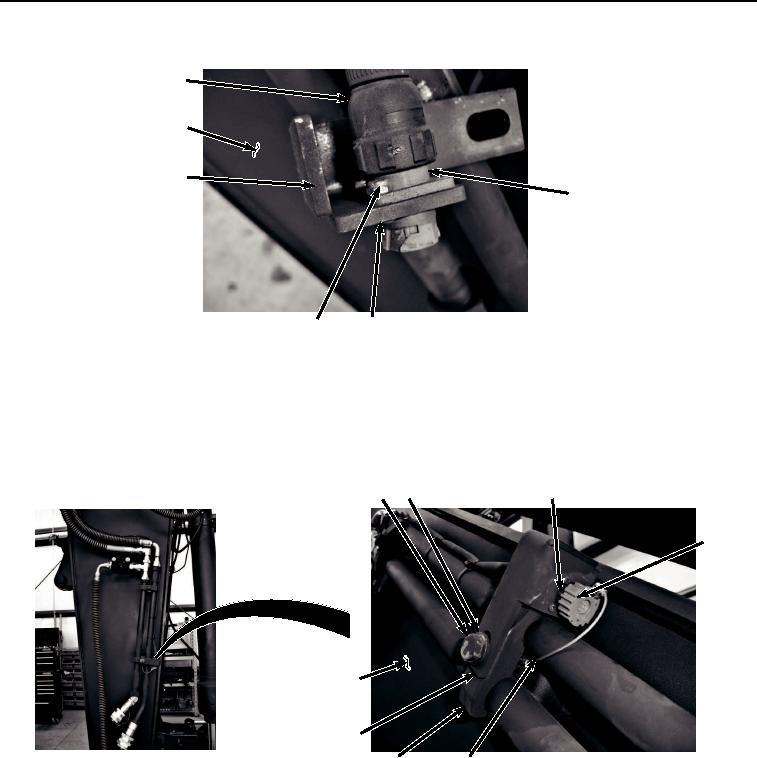

Figure 6.
Connector and Harness Installation.
2.
Install electrical connector Z3 (Figure 6, Item 16) to mounting bracket (Figure 6, Item 12) with four screws
(Figure 6, Item 17) and nuts (Figure 6, Item 18).
3.
Install bracket (Figure 7, Item 13) and mounting bracket (Figure 7, Item 12) to arm (Figure 7, Item 14) with bolt
(Figure 7, Item 9), washer (Figure 7, Item 10), and lanyard (Figure 7, Item 11).
10
16
9
15
14
12
13
11
HYEX01789
Figure 7.
Brackets Installation.
4.
Install cover (Figure 7, Item 15) to electrical connector Z3 (Figure 7, Item 16).
5.
Connect crush-all main body wiring harness connector Z1 (Figure 8, Item 5) to crush-all boom wiring harness
connector Z1 (Figure 8, Item 6).
