TM 5-3805-294-23-4
0510
REMOVAL - Continued
27
28
31
29
32
30
34
5
33
35
36
6
HYEX03194

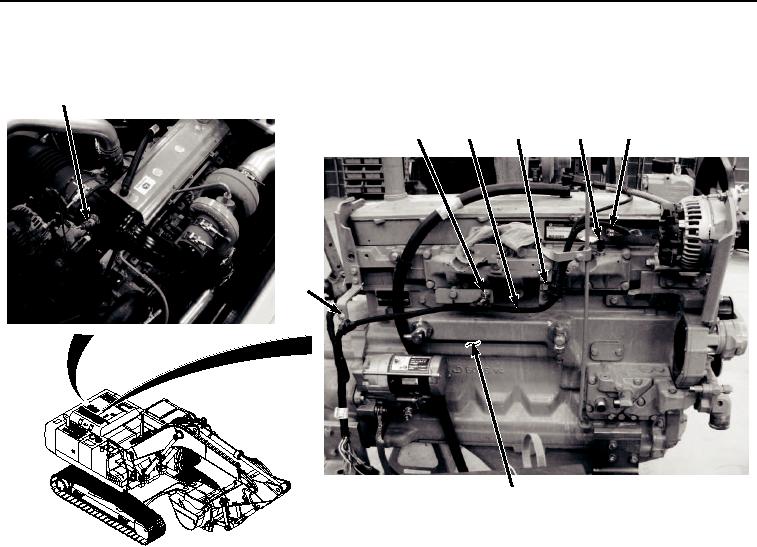

Figure 3. Engine Right Side Wiring Harness Removal.
15.
Disconnect engine wiring harness connector C01 (Figure 3, Item 29) from fuel injector (Figure 3, Item 30).
16.
Disconnect engine wiring harness connector T02 (Figure 3, Item 31) from manifold air temperature sensor
(Figure 3, Item 32).
17.
Remove bolt and clamp assembly (Figure 3, Item 33) and engine wiring harness (Figure 3, Item 5) from engine
(Figure 3, Item 6).
18.
Remove bolt and clamp assembly (Figure 3, Item 34) and engine wiring harness (Figure 3, Item 5) from engine
(Figure 3, Item 6).
19.
Remove nut (Figure 3, Item 35), bolt and clamp assembly (Figure 3, Item 36), and engine wiring harness
(Figure 3, Item 5) from engine (Figure 3, Item 6).
20.
Disconnect engine wiring harness connector I01 (Figure 4, Item 37) from engine interface wiring harness
(Figure 4, Item 38).
