INSTALLATION - Continued
WARNING
ADHESIVES AND SEALANTS
7.
Apply thread lock to threads of two bolts (Figure 4, Item 5).
4
3
2
1
7
6
5
HYEX00496

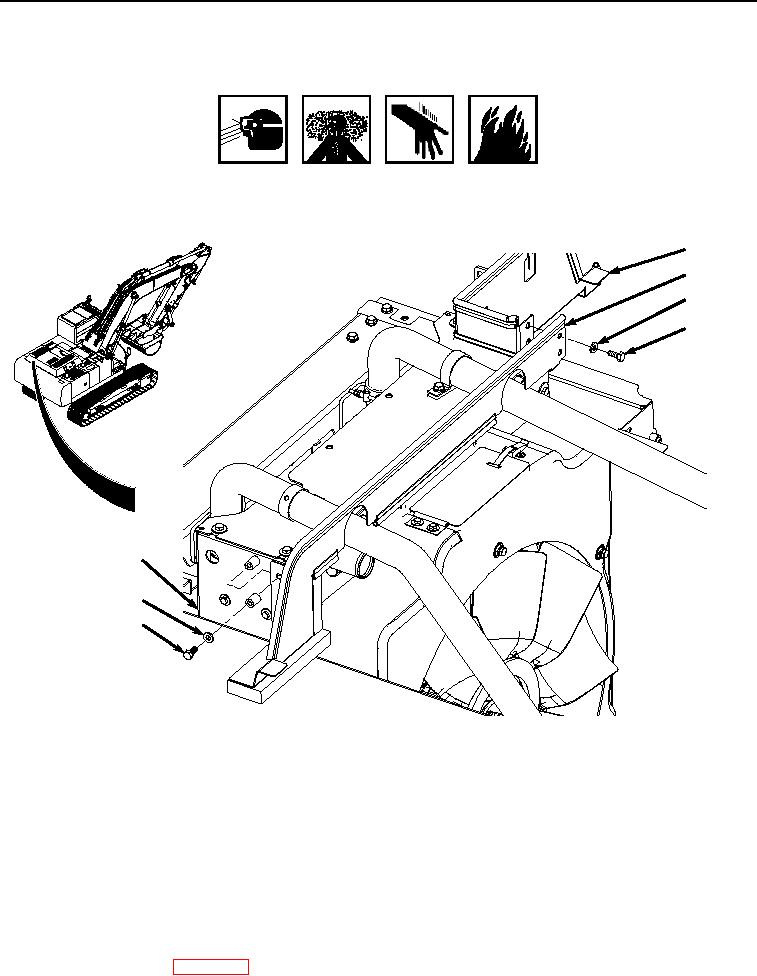

Figure 4.
Rear Radiator Top Cover Installation.
8.
Install rear radiator top cover (Figure 4, Item 3) to support (Figure 4, Item 7) with two bolts (Figure 4, Item 5)
and washers (Figure 4, Item 6).
9.
Apply thread lock to threads of three bolts (Figure 4, Item 1).
10.
Install two bolts (Figure 4, Item 1) and washers (Figure 4, Item 2) to rear radiator top cover (Figure 4, Item 3)
and forward radiator top cover (Figure 4, Item 4).
END OF TASK
FOLLOW ON MAINTENANCE
1.
Install engine cover. (WP 0594)
