TM 5-3805-294-23-4
0530
REMOVAL - Continued
4
3
2
1
7
6
5
HYEX00496

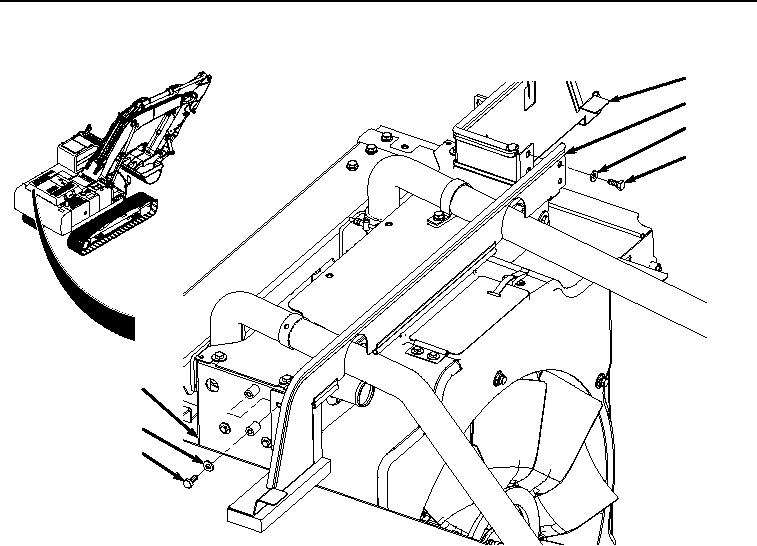

Figure 1.
Rear Radiator Top Cover Removal.
3.
Remove two bolts (Figure 1, Item 5), washers (Figure 1, Item 6), and rear radiator top cover (Figure 1, Item 3)
from support (Figure 1, Item 7).
4.
Remove two caps (Figure 2, Item 8) from counterweight (Figure 2, Item 9).
