STARTER PROTECTION RELAY REMOVAL
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Tag and mark wires, connectors, and wiring harnesses prior to removal to ensure proper
installation.
Note position of each tie wrap and remove as required.
1.
Disconnect starter protection relay wiring harness connector (Figure 3, Item 13) from front of starter protection
relay (Figure 3, Item 14).
15, 16, 17
14
5
13
HYEX03322

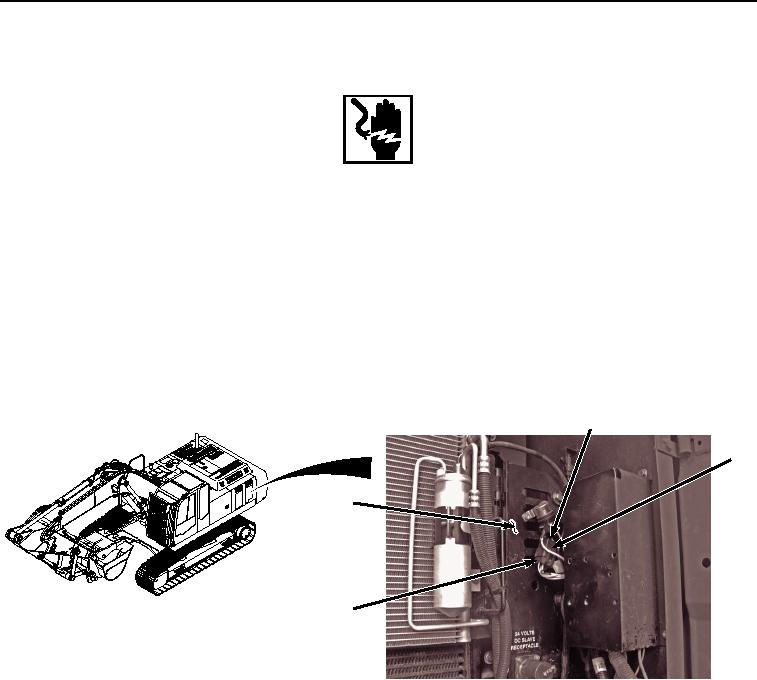

Figure 3. Starter Protection Relay Removal.
2.
Remove screw (Figure 3, Item 15), washer (Figure 3, Item 16), locknut (Figure 3, Item 17), and starter protection
relay (Figure 3, Item 14) from slave receptacle panel (Figure 3, Item 5). Discard locknut.
END OF TASK
