TM 5-3805-294-23-4
0529
STARTER RELAY REMOVAL - Continued
1
1
2
2
8
6
12
4
3
3
5
9
11
4
7
9
10
10
HYEX03321

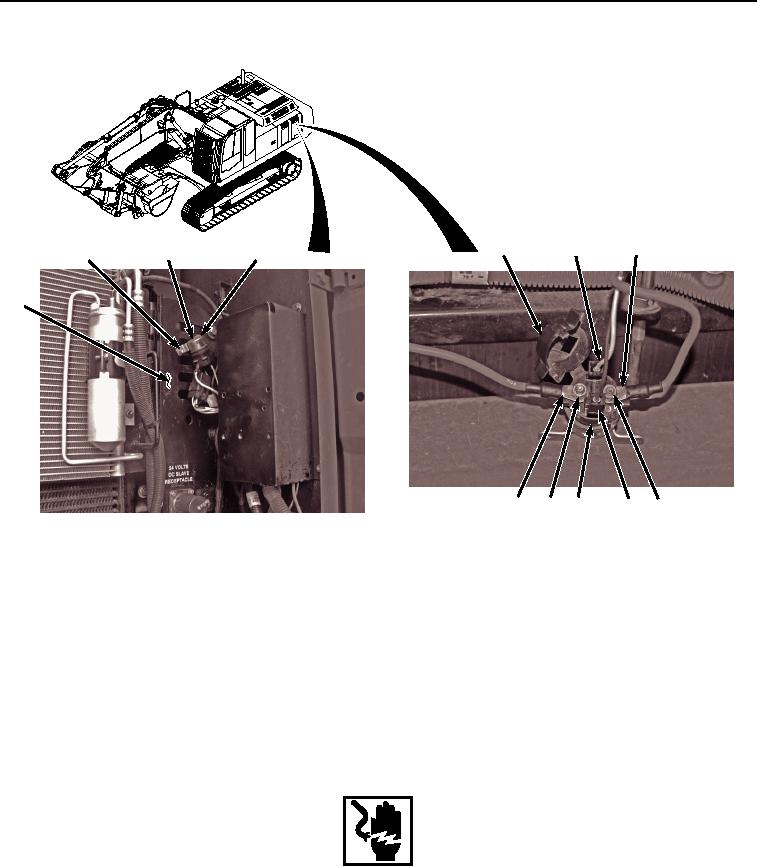

Figure 1.
Starter Relay Removal.
2.
Disconnect connector (Figure 1, Item 6) and connector (Figure 1, Item 7) from starter relay (Figure 1, Item 4).
3.
Open starter relay cover (Figure 1, Item 8).
4.
Remove two nuts (Figure 1, Item 9), lockwashers (Figure 1, Item 10), wire terminal (Figure 1, Item 11), and
wire terminal (Figure 1, Item 12) from starter relay (Figure 1, Item 4). Discard lockwashers.
END OF TASK
STARTER RELAY INSTALLATION
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
