INSTALLATION - Continued
21
HYEX02529
20
19

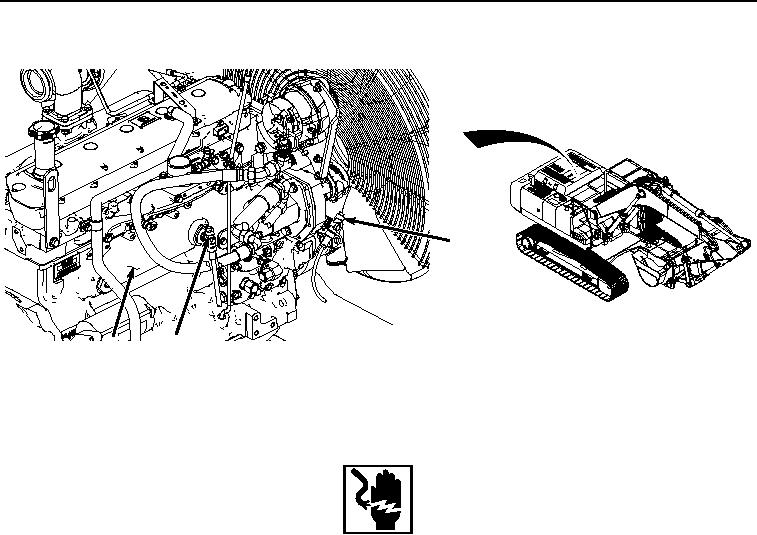

Figure 18.
Open Heater Valves.
18.
Open heater valve (Figure 18, Item 19) at engine (Figure 18, Item 20).
WARNING
Ensure electrical power is off prior to working on all electrical connections. Prior to working
on or around vehicle, remove all jewelry, such as rings, ID tags, bracelets, etc. Jewelry, and
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
NOTE
Install tie wraps as noted prior to removal.
19.
Install wiring harness connector M7 (Figure 19, Item 17) to air conditioner/heater blower motor (Figure 19, Item
18).
