TM 5-3805-294-23-4
0553
RIGHT-HAND ARMREST REMOVAL - Continued
7
6
5
4
HYEX00768

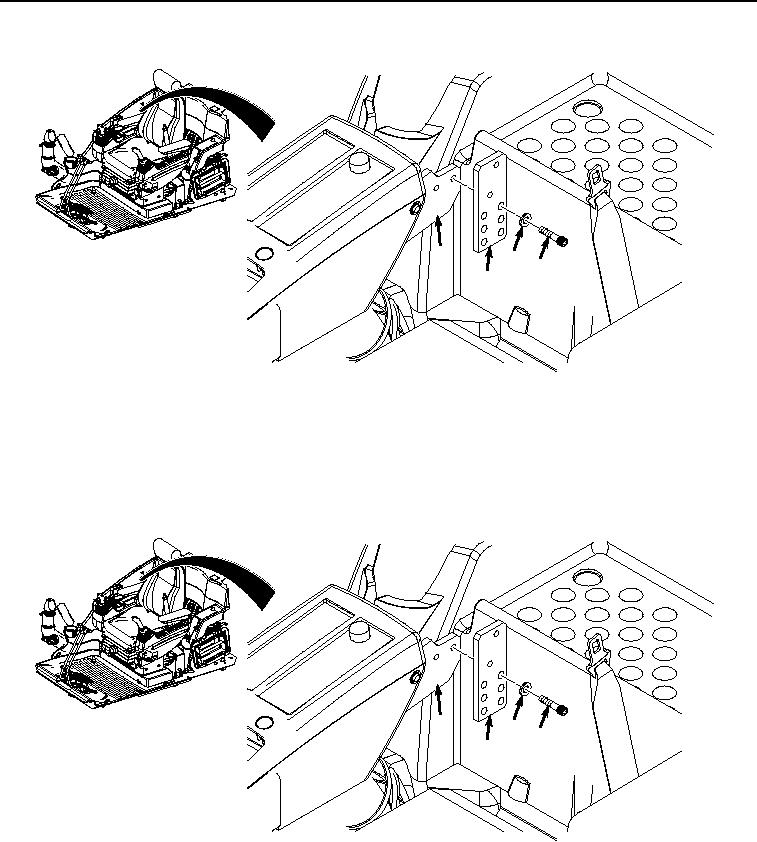

Figure 2. Bracket Removal.
END OF TASK
RIGHT-HAND ARMREST INSTALLATION
1.
Install bracket (4) to right-hand console (7) with two screws (5) and washers (6).
7
6
5
4
HYEX00768
Figure 3.
Bracket Installation.
2.
Install armrest (3) to bracket (4) with two screws (1) and washers (2).
