TM 5-3805-294-23-4
0553
RIGHT-HAND ARMREST INSTALLATION - Continued
2
1
3
4
HYEX00769

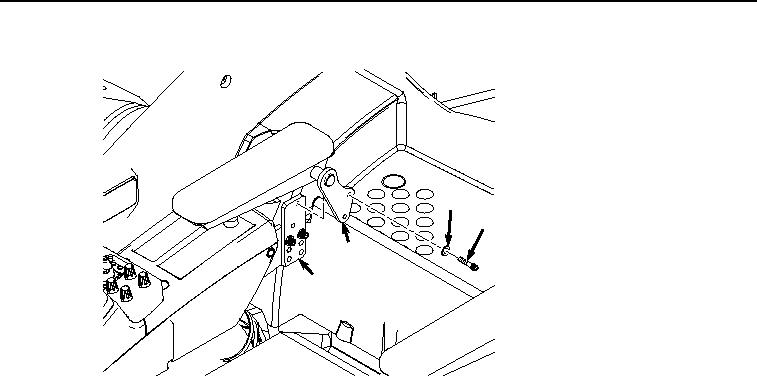

Figure 4.
Right-Hand Armrest Installation.
END OF TASK
LEFT-HAND ARMREST REMOVAL
NOTE
Seat shown removed for clarity.
1.
Remove two screws (8), washers (9), and armrest (10) from bracket (11).
