TM 5-3805-294-23-4
0553
LEFT-HAND ARMREST REMOVAL - Continued
10
9
8
12
13
14
11
HYEX00770

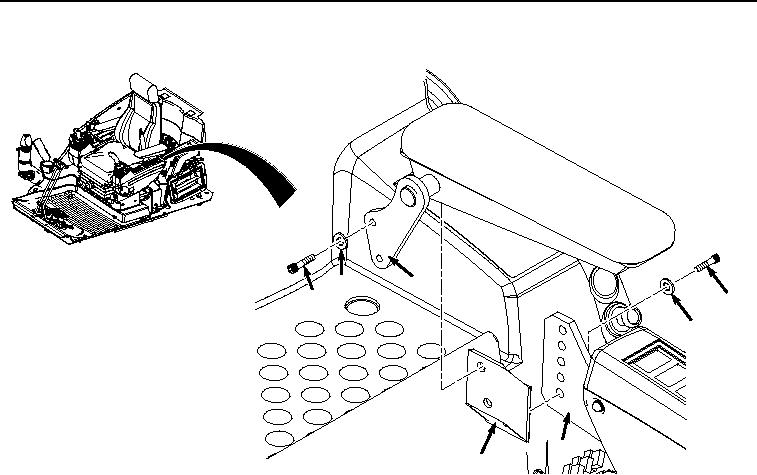

Figure 5. Left-Hand Armrest Removal.
2.
Remove two screws (12), washers (13), and bracket (11) from left-hand console (14).
END OF TASK
LEFT-HAND ARMREST INSTALLATION
1.
Install bracket (11) to left-hand console (14) with two screws (12) and washers (13).
0553-4
