REMOVAL - Continued
4
7
6
5
4
3
2
1
HYEX01878

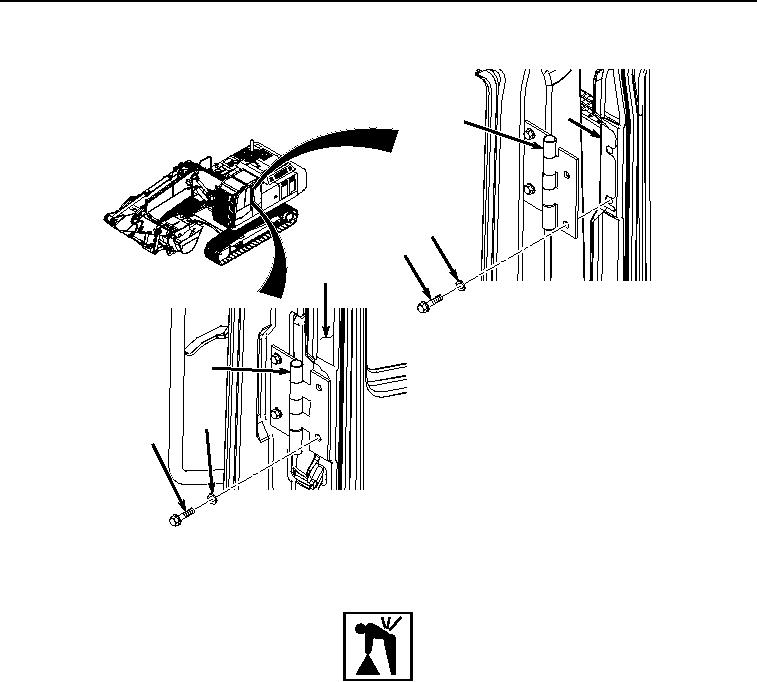

Figure 1. Cab Door Removal.
WARNING
Cab door weighs approximately 80 lb (36.3 kg). Do not attempt to lift or move cab door without
the aid of an assistant and suitable lifting device. Failure to comply may result in injury or
death to personnel.
2.
With the aid of an assistant and a suitable lifting device, remove two bolts (Figure 1, Item 5), lockwashers
(Figure 1, Item 6), and cab door (Figure 1, Item 4) from cab upper hinge (Figure 1, Item 7). Discard lockwashers.
3.
Remove bushing (Figure 2, Item 8) from retaining clips (Figure 2, Item 9) starting at bottom of cab door (Figure
2, Item 4) and working towards top.
