TM 5-3805-294-23-4
0560
REMOVAL
15
14
HYEX01926

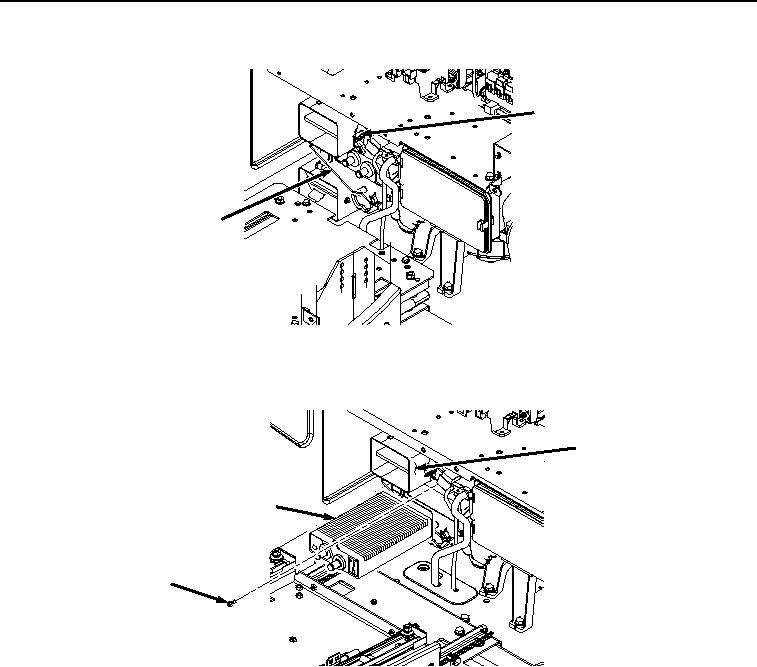

Figure 5.
Rod Removal.
7.
Remove screw (Figure 6, Item 16) from heater core (Figure 6, Item 11).
17
11
16
HYEX01925
Figure 6. Heater Core Removal.
8.
Remove heater core (Figure 6, Item 11) from air conditioner/heater unit (Figure 6, Item 17).
END OF TASK
INSTALLATION
1.
Install heater core (Figure 7, Item 11) to air conditioner/heater unit (Figure 7, Item 17) with screw (Figure 7,
Item 16).
