INSTALLATION - Continued
tools can catch on equipment, contact positive electrical circuits, and cause a direct short,
severe burns, or electrical shock. Failure to comply may result in injury or death to personnel.
1.

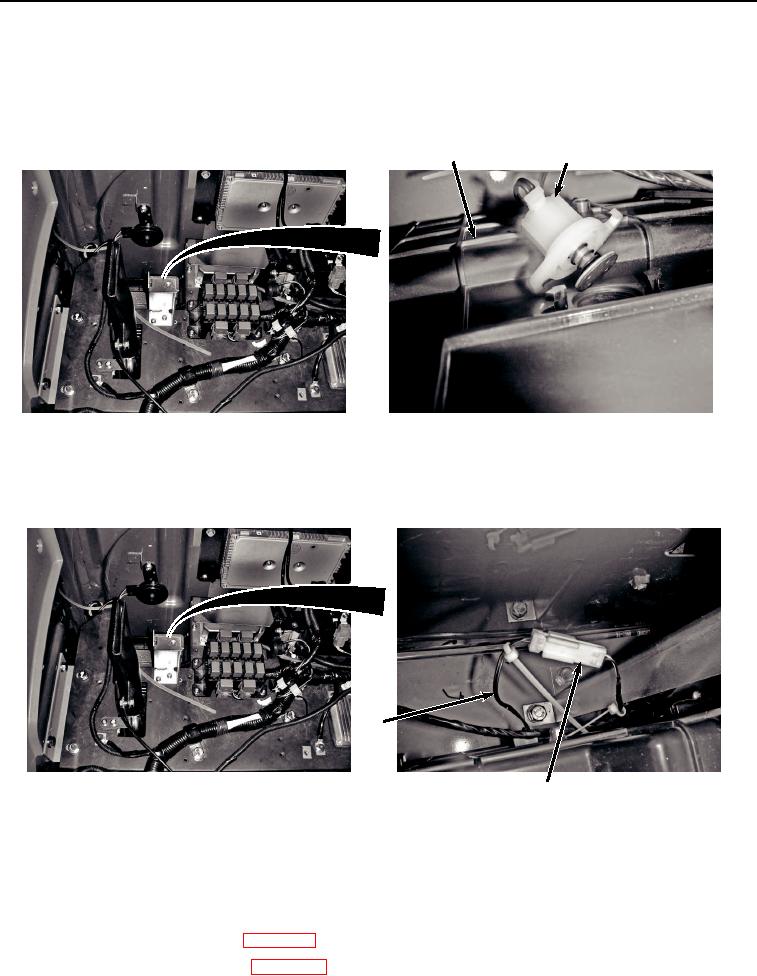

Install heater core temperature sensor (Figure 3, Item 2) to air conditioner/heater unit (Figure 3, Item 3).
3
2
HYEX01932
Figure 3. Heater Core Temperature Sensor Installation.
2.
Install right-hand console wiring harness W11 connector B43 (Figure 4, Item 1) to heater core temperature
sensor (Figure 4, Item 2).
2
1
HYEX01931
Figure 4. Harness Installation.
END OF TASK
FOLLOW-ON MAINTENANCE
1.
Install cab rear tray and cover. (WP 0566)
2.
Connect negative battery cable. (WP 0521)
